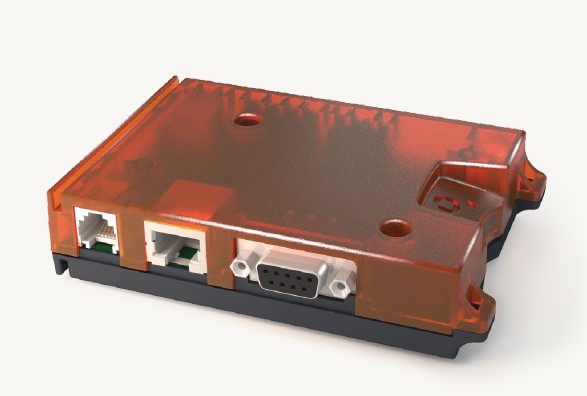

Introducing the Cinterion® EHS6T 3G Smart Terminals from Gemalto

ADV title

Gemalto’s new suite of Cinterion® EHS6T 3G Smart Terminals takes M2M simplicity to a whole new level, leveraging Gemalto’s next-generation Java® embedded technology, the plug-and-play solutions are powered by a five-band HSPA+ baseband engine enabling high-speed, secure wireless TCP/IP connectivity anywhere in the world for a variety of industrial applications such as metering, remote monitoring, transportation, security and many more.

The EHS6T 3G Smart Terminals provide first-time M2M developers and small-scale implementers with a flexible, cost effective solution to quickly launch enterprise optimization solutions that expand the Internet of Things. Optional features include embedded component SIM (MIM) and a cloud based Sensor-Logic application enablement platform that enable out-of-the-box M2M communication reducing integration complexity and Total Cost of Ownership. Like all Cinterion® products, the EHS6T 3G Smart Terminals come with full type approval (FTA) and are certified by the largest carriers worldwide.


Free Sample Features
  • Five Band UMTS (WCDMA/FDD) - Bands: 800, 850, 900, 1900 and 2100 MHz
  • Quad-Band GSM - Bands: 850, 900, 1800 and 1900 MHz
  • EDGE/GPRS Class 12
  • FOTA
  • USB 2.0
  • TCP/IP stack access via AT command and transparent TCP services
  • Java™ profile IMP-NG & CLDC 1.1 HI
  • Secure Connection for client IP services
  • Flexible mounting concept
Datasheets

The EHS6T 3G Smart Terminals offer a simple and reliable plug-and-play communication device that allows new M2M implementers to quickly connect their industrial applications using wireless technology. With very little integration and approval efforts, they provide a cost effective, swift solution for enterprise optimization technology.

The Cinterion® EHS6T 3G Smart Terminals are available with either USB or Ethernet industrial interfaces and are encased in a compact and rugged housing, about the size of a credit card, with integrated SIM cardholder and an unprecedented variety of mounting options.

EHS6T 3G Smart Terminal Variants

Interface / Product name RS232 USB 2.0 Ethernet Frequencies
EHS6T USB
  Five Band 3G , Four Band 2G
EHS6T LAN

Five Band 3G , Four Band 2G
Common to all are multiple GPIO’s, I²C and SPI via Weidmüller connector.

Mounting options supported

  • DIN rail mounting
  • C-rail mounting
  • Screw fixing
  • Cable tie fixing

These miniaturized EHS6T 3G Smart Terminals work in virtually any application providing secure 24-7 connectivity and features Embedded JavaTM offering easy and fast application development, a broad choice of tools, high code reusability, easy maintenance, a proven security concept, on-device debugging as well as multi-threading programming and program execution.

Anglia are offering customers a FREE EHS6T 3G Smart Terminal, to register for yours please fill in the form below.

For a FREE Sample please fill in the form below

First name *
Last Name *
Company *
Telephone *
Email Address *
Project Name
Project Volume *
Project Description
*


FREE samples for UK and Ireland customers only, subject to availability.
