Introducing the C308F Bussmann Series Fuse for Protecting Intrinsically Safe Devices from Eaton

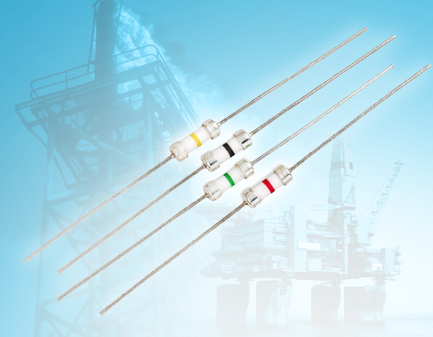

C308F

Power management company Eaton has introduced the C308F Bussmann Series of fast-acting, ceramic tube fuses for intrinsic safety requirements used in hazardous environments such as network barriers and other equipment used in mines, oil drilling structures, gas stations, gas meters, chemical refineries and hazardous material transportation. Intrinsic Safety (IS) is universally recognized under the specification EN60079-11, which is a low-energy signalling technique that prevents explosions from occurring during industrial activity by ensuring that the energy transferred to a hazardous area is well below the energy required to initiate an explosion.

Free Demo Board
Key Features
  • Meets Standards (EN60079-11) for hazardous applications
  • cURus Recognition, file number: E19180
  • Fast-acting, high breaking capacity of 4000 amps
  • Ceramic tube construction
  • Compact 3x8.4mm size
  • Voltage rating 250Vac/dc.
  • Current ratings from 40mA to 250mA
  • Colour coded for easy identification
  • RoHS compliant
Data

The C308F series has been designed for manufacturers of intrinsically safe barrier networks who need fast-acting devices that prevent explosions in extremely hazardous conditions. The C308F fuse line offers advanced overcurrent protection that meets internationally-defined safety requirements where electrical equipment is required in the presence of highly volatile materials.

The C308F fuse series utilises a ceramic tube construction which meets EN60079-11 standards for explosive environments and delivers a high interrupting rating for circuit protection up to 250 volts (V) and 250 milliAmperes (mA) for both alternating current (AC) and direct current (DC) power. The fuses are fast-acting and provide a high breaking capacity of 4,000 amperes (A) in a compact 3 x 8.4-millimeter size. The fuses can also be specified with optional axial leads (pig tails).

The C308F Bussmann series fuses can be used in intrinsically safe devices defined according to the international standard by the International Society for Automation (ANSI/ISA-RP12.6: less than1.5V, less than 0.1A, and less than 25 milliWatt during operation) such as contactors, thermocouples, LEDs, non-inductive potentiometers and resistors. They can also be used for non-simple devices such as transmitters, transducers, solenoid valves, and relays.

Anglia are offering customers FREE samples of the C308F Bussmann series of Fuses for protecting intrinsically safe devices from Eaton, please fill in the form below to register your interest now.

To register for a FREE sample of the C308F Bussmann Fuse from Eaton please fill in the form below.

First name *
Last Name *
Company *
Telephone *
Email Address *
Project Name
Project Volume *
Project Description
*


Free samples are subject to availability.
