Digi International introduces the powerful and secure Digi ConnectCore® MP1 module based on the STM32MP1 series microprocessor. Development kits available from Anglia.

The Digi ConnectCore® MP1 modules from Digi International deliver a highly integrated and secure connected system-on-module solution. The compact Digi SMTplus® surface-mount form factor provides simplified design integration, efficiency and reliability. Built on the STM32MP133 and STM32MP157 microprocessor platforms from STMicroelectronics, the Digi ConnectCore MP1 modules are the intelligent communication engine for today’s secure connected devices with pre-certified dual-band Wi-Fi 5 (802.11a/b/g/n/ac), Bluetooth® 5.2 or Gigabit Ethernet connectivity.

The Digi ConnectCore MP1 module family is highly scalable and provides ideal options for headless gateway products with rich connectivity requirements and display devices, as well as advanced HMIs powered by a 3D graphics processing unit (GPU) and camera support. Digi ConnectCore MP1 system-on-modules are designed for industrial and medical use cases with high levels of security, reliability, performance and 10+ year longevity

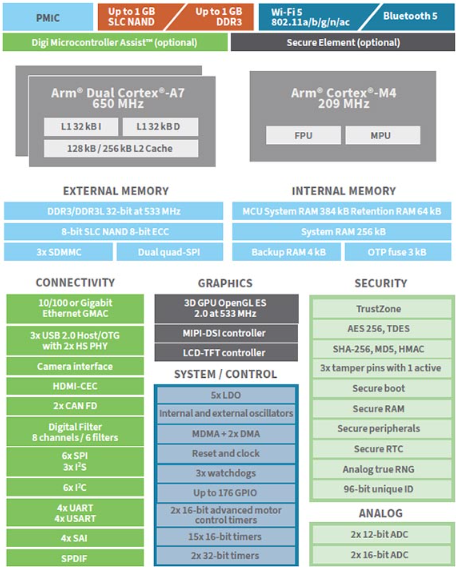

Dig ConnectCore MP15 Block Diagram

Free Samples and Evaluation Board
Key Features
  • Industrial-grade, scalable, embedded SOM platform
  • Based on STMicroelectronics STM32MP133 and STM32MP157 MPU
  • Pre-certified dual-band Wi-Fi 5 (802.11ac) and Bluetooth® 5.2
  • Gigabit Ethernet connectivity available
  • Power management with hardware and software support
  • Digi SMTplus® form factor (29 x 29 mm) for ultimate reliability
  • High level of pin-compatibility with Digi ConnectCore 6UL SOMs
  • Built-in Digi TrustFence® device security, identity and privacy
  • Seamless cellular modem and Digi XBee® integration
  • Digi ConnectCore Cloud Services remote monitoring, device management and IoT application enablement
  • Digi Embedded Yocto Linux support
  • Turnkey development services available from Digi WDS
  • Operating temperature range: −40 °C to 85 °C
Data

Available in 4 variants the Digi ConnectCore MP1 module family offers a choice of microprocessors, STM32MP133 or STM32MP157, memory sizes 256MB (MP133) or 512MB (MP157) and can be specified as a secure wireless module featuring Wi-Fi 5 and Bluetooth 5.2 or with secure Gigabit Ethernet connectivity. Both the MP133 and MP157 based modules provide a huge array of peripherals and interfaces which include I2C, UART, USART, SPI, CAN FD, USB 2.0 OTG, Timers, Secure RTC, Watchdogs and many other, check the datasheet link on this page for the full list.

Measuring just 29 mm x 29 mm x 3 mm the SOMs conform to the Digi SMTplus® surface-mount form factor making them easy to integrate and taking up minimal space on the PCB, the SOMs have an industrial operating temperature range of −40 °C to 85 °C; depending on use case and enclosure/system design.

Embedded device security is recognised as a critical design aspect for the growing number of connected IoT applications, the Digi ConnectCore MP1 SOM solutions provide built-in security with Digi TrustFence®, a fully integrated device-security framework simplifying the process of securing connected devices.

The Digi ConnectCore MP1 modules are supported by the Digi ConnectCore Cloud Services, Digi ConnectCore Security Services and Expert Support providing additional capabilities and ease of development, deployment and maintenance. In addition, they are supported by Digi Embedded Yocto®, Digi’s feature-rich Linux distribution with many extensions for embedded product design that provides a fully tested, validated and maintained turnkey Linux software platform. Furthermore, the Digi Wireless Design Services (WDS) offers additional cellular integration support, certification assistance, and custom design and build services to get your products to market smarter and faster. Contact Anglia to find out more.

Development Kit

The Digi ConnectCore MP1 SOM is supported by The Digi ConnectCore MP1 57 and Digi ConnectCore MP1 33 Development Kits, these are complete development platforms for intelligent, connected and secure embedded industrial products with a broad suite of tools and turnkey Linux software support.

The development kits feature a tightly integrated, secure and industrial-specified connected system-on-module (SOM) solution in a small and reliable form factor and enables developers to explore the full capabilities of the Digi ConnectCore MP1 SOM and at the same time allows them to bring reliable and secure products to market much faster than would otherwise be possible. Built on the STM32MP15 microprocessor, the Digi ConnectCore MP1 57/133 kits are the world’s first connected development kits with remote capabilities.

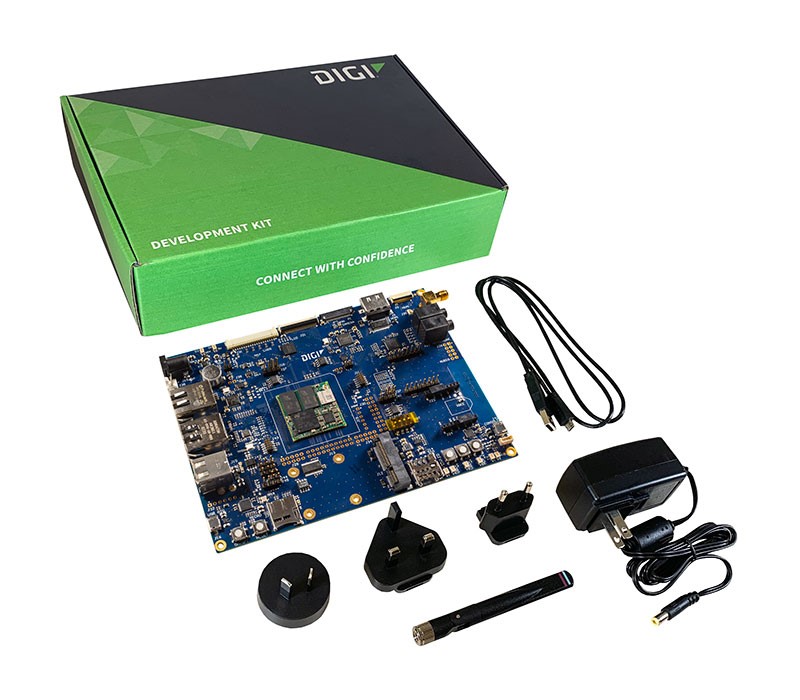

Unboxing the Digi ConnectCore MP1 57 Development Kit

The Digi ConnectCore MP1 modules are suitable for a wide range of applications including Industrial automation and control, Medical equipment, building automation, Intelligent IoT edge devices and many more.

With more than twenty years of embedded SOM experience enabling millions of globally connected products, Digi is a trusted embedded and IoT solutions provider, simplifying the way customers design, build and deploy connected applications.

Anglia are offering customers a FREE Development Kit for the Digi ConnectCore MP1 modules from Digi International, please fill in the form below to register your interest now.

To register for a FREE Development Kit for the Digi ConnectCore MP1 modules from Digi International, please fill in the form below.

First name *
Last Name *
Company *
Telephone *
Email Address *
Project Name
Project Volume *
Project Description
*


FREE samples for UK and Ireland customers only, subject to availability.
