HARTING has launched the new D-Sub PushPull housings. Designed to improve efficient and process-safe handling, the HARTING D-Sub PushPull transforms a well-known connector family into a simplified solution. The PushPull locking mechanism significantly improves the assembly process and reduces installation and maintenance time by up to 50%.
Cut down on installation and maintenance time
To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

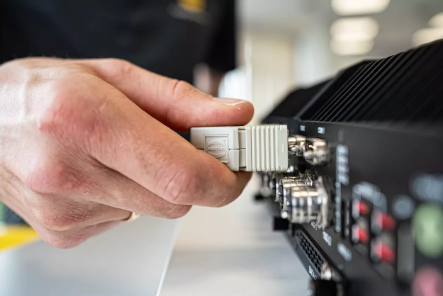

The HARTING D-Sub PushPull connector eliminates the need for fixing screws, utilizing a straightforward PushPull mechanism that securely attaches to fixing bolts. In addition, an innovative design not only speeds up the assembly process but also allows for easy upgrades of existing variants, enhancing convenience and handling. With options for internal or external cable clamps, the connector accommodates cable diameters up to 14mm and supports up to three cable entries, making it versatile for various applications.
PushPull connectors have been very important to HARTING for decades and they are delighted to now also offer this feature for D-Sub interfaces. D-Sub connectors are still ideal for a wide range of applications in industrial environments where compatibility, durability and reliability are paramount. With this unique PushPull feature and user-centric design, HARTING not only leads the way in innovative connectivity solutions, but also offers significant time savings for installers, furthermore a clear acoustic feedback is provided to confirm a secure locked connection. This efficiency allows users to streamline their operations, reduce downtime and increase productivity.
The PushPull D-Sub housings are available in standard and shielded versions, constructed from robust thermoplastic materials flammability rated to UL94V-0 or UL94-HB (Metallised versions) with durability specified for ≥ 500 mating cycles.
PushPull D-Sub Demonstration

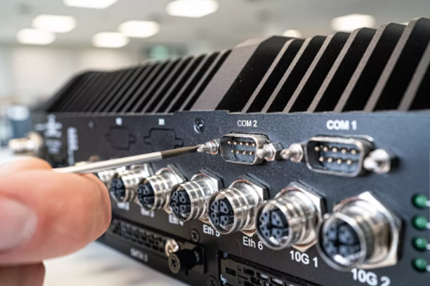

Upgrading existing D-Sub connectors to the new PushPull system is simple.
The PushPull D-Sub connectors are suited to a wide range of applications including Medical Equipment, Industrial, Security, Robotics, Home & Factory Automation and many others.
Anglia are offering customers FREE samples of the PushPull D-Sub connectors from HARTING, please fill in the form below to register your interest now.
Free samples are subject to availability.
