STMicroelectronics STHS34PF80 low power Infrared Sensor offers excellent sensitivity and detects stationary objects. Evaluation board and samples available from Anglia

The STHS34PF80 sensor from STMicroelectronics is an uncooled, factory-calibrated, infrared motion and presence detection sensor with operating wavelength between 5 µm and 20 µm.

STMicroelectronics infrared sensors have been designed to accurately detect object movements and sense human presence by measuring the infrared radiation of objects within their field of view. There are several different technologies to support infrared-based sensors, and ST offers the TMOS infrared sensor solution to detect human or object presence and movement detection with high accuracy and low-power consumption, directly with a digital interface.

The STHS34PF80 infrared sensor is based on TMOS technology which stands for Thermal MOS. It works by integrating the infrared radiation emitted by objects in its field of view (FoV) and then concentrating this radiation onto a MEMS-thermally-insulated gate using ST's state-of-the-art MEMS technology.

TMOS technology sensors feature an isolated MOS transistor array, when the infrared radiation reaches the gate of the array it biases the MOS transistors which can then be used to remotely sense temperature of objects or people. This innovative technology offers many advantages to system designers since it shows much greater sensitivity with respect to other competing technologies like PIR, furthermore it has the added capability to sense non-moving targets. These two key benefits enable new and improved applications and can provide significant system cost reductions, by removing, for example, infrared concentrators like Fresnel lenses typically needed for such competing technologies.

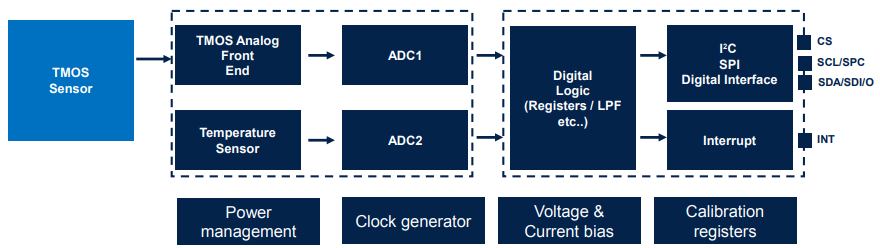

Block Diagram

Free Samples and Evaluation Board
Key Features
  • High-sensitivity infrared presence and motion detection sensor
  • Reach up to 4 meters without lens for objects measuring 70 x 25 cm²
  • Integrated silicon infrared filter
  • SMD friendly
  • Capable of detecting stationary objects
  • Capable of distinguishing between stationary and moving objects
  • 80° field of view
  • Factory calibrated
  • Low power
  • Embedded smart algorithm for presence / motion detection
Electrical specifications
  • Supply voltage: 1.7 V to 3.6 V
  • Supply current: 10 µA
  • 2‑wire I²C / 3-wire SPI serial interface
  • Programmable ODRs from 0.25 Hz to 30 Hz
  • One-shot mode
Sensing specifications
  • Infrared sensitivity: 2000 LSB/°C
  • RMS noise: 25 LSBrms
  • Operating wavelength: 5 µm to 20 µm
  • Local temperature sensor accuracy: ±0.3 °C
Package specifications
  • LGA 10‑lead, 3.2 x 4.2 x 1.455 (max) mm
  • ECOPACK and RoHS compliant
Data

The STHS34PF80 sensor has been designed to measure the amount of infrared radiation emitted from an object within its field of view, the sensed information is then digitally processed by an onboard ASIC, which can be programmed to monitor motion, presence, or an overtemperature condition. The STHS34PF80 has exceptional sensitivity and can detect the presence of a human being at a distance up to 4 meters without the need of an optical or fresnel lens.

The STHS34PF80 TMOS sensor is suitable for a wide range of applications including Industrial automation, Predictive maintenance, Smart home/building control and monitoring, Lighting, Energy saving appliances and Security.

The TMOS Sensor is housed in a small 3.2 x 4.2 x 1.455 mm 10-lead LGA package and has an operating temperature range of -40°C to +85°C.

Evaluation Board

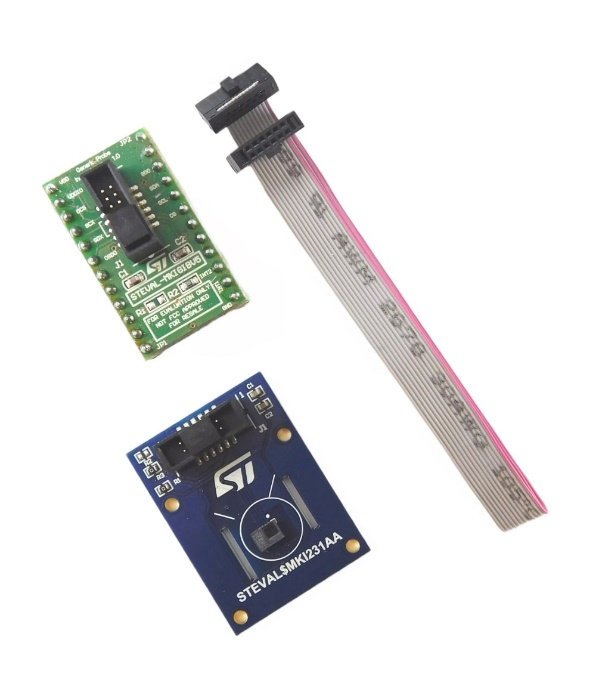

The STEVAL‑MKI231KA demonstration board is available to support system designers. The demonstration board is a kit made up of a PCB, mounting the STHS34PF80 low-power, high-sensitivity infrared sensor for presence and motion detection, which is connected through flat cable to a generic adapter board (STEVAL‑MKIGIBV5) to make it compatible with the STEVAL‑MKI109V3. A plastic holder with a Fresnel lens (TMOS63-10) is also provided in the kit to verify best performances of the device.

The STEVAL‑MKIGIBV5 can be plugged into a standard DIL 24 socket. The kit provides the complete STHS34PF80 pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVAL‑MKI109V3 motherboard, which includes a high performance 32‑bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico-GUI), or dedicated software routines for customized applications.

It is also possible to plug the board into X‑NUCLEO‑IKS01A3, X‑NUCLEO‑IKS02A1 or X‑NUCLEO‑IKS4A1. The kit is included in the X‑CUBE‑MEMS1 expansion software package for STM32.

The STHS34PF80 TMOS sensor is suitable for a wide range of applications including Industrial automation, Predictive maintenance, Smart home/building control and monitoring, Lighting, Energy saving appliances and Security.

Anglia are offering customers a FREE evaluation board and samples of the STHS34PF80 low power TMOS Infrared Sensor from STMicroelectronics, please fill in the form below to register your interest now.

To register for a FREE evaluation board and samples of the STHS34PF80 low power TMOS Infrared Sensor from STMicroelectronics, please fill in the form below

First name *
Last Name *
Company *
Telephone *
Email Address *
Project Name
Project Volume *
Project Description
*


FREE samples for UK and Ireland customers only, subject to availability.
