Powered by an Arm® Cortex®‑M33 core and built on STMicroelectronics' advanced 40 nm process technology, the STM32C5 series establishes a new performance benchmark for cost‑sensitive embedded designs, redefining the capabilities expected from entry‑level microcontrollers. Operating at 144 MHz and delivering up to 593 CoreMark approximately three times the performance of typical Cortex‑M0+ devices, the series significantly increases processing headroom without raising bill‑of‑materials cost or component count.
Engineered for modern industrial requirements, the STM32C5 family combines a robust architectural foundation with enhanced security features and the maturity of the proven STM32 ecosystem. With up to 1024 Kbytes of flash memory and 256 Kbytes of SRAM, alongside key integrated peripherals such as Ethernet, Octo‑SPI, and FDCAN, the series provides a highly capable platform for a broad range of embedded applications. A wide selection of package options, from 20 to 144 pins, and support for ambient temperatures up to 125 °C ensure flexibility across diverse system designs, from compact low‑power nodes to more demanding industrial controllers.
The STM32C5 series including the STM32C53x, STM32C55x, STM32C59x and their cryptography enabled STM32C54x, STM32C56x and STM32C5Ax variants, is built around a high performance Arm® Cortex® M33 core running at up to 144 MHz. The core integrates a single precision FPU, the full Arm® DSP instruction set, and a memory protection unit (MPU), delivering strong computational capability and enhanced application security.
Across the family, devices feature high‑speed embedded memory ranging from 128 Kbytes to 1 Mbyte of Flash and up to 256 Kbytes of SRAM, depending on the variant. A common bus architecture comprising three APB domains, three AHB domains, and a 32‑bit multi‑AHB matrix ensures efficient data throughput. The STM32C593x and STM32C5A3x devices further extend memory flexibility with an integrated Octo‑SPI interface for external memory expansion.

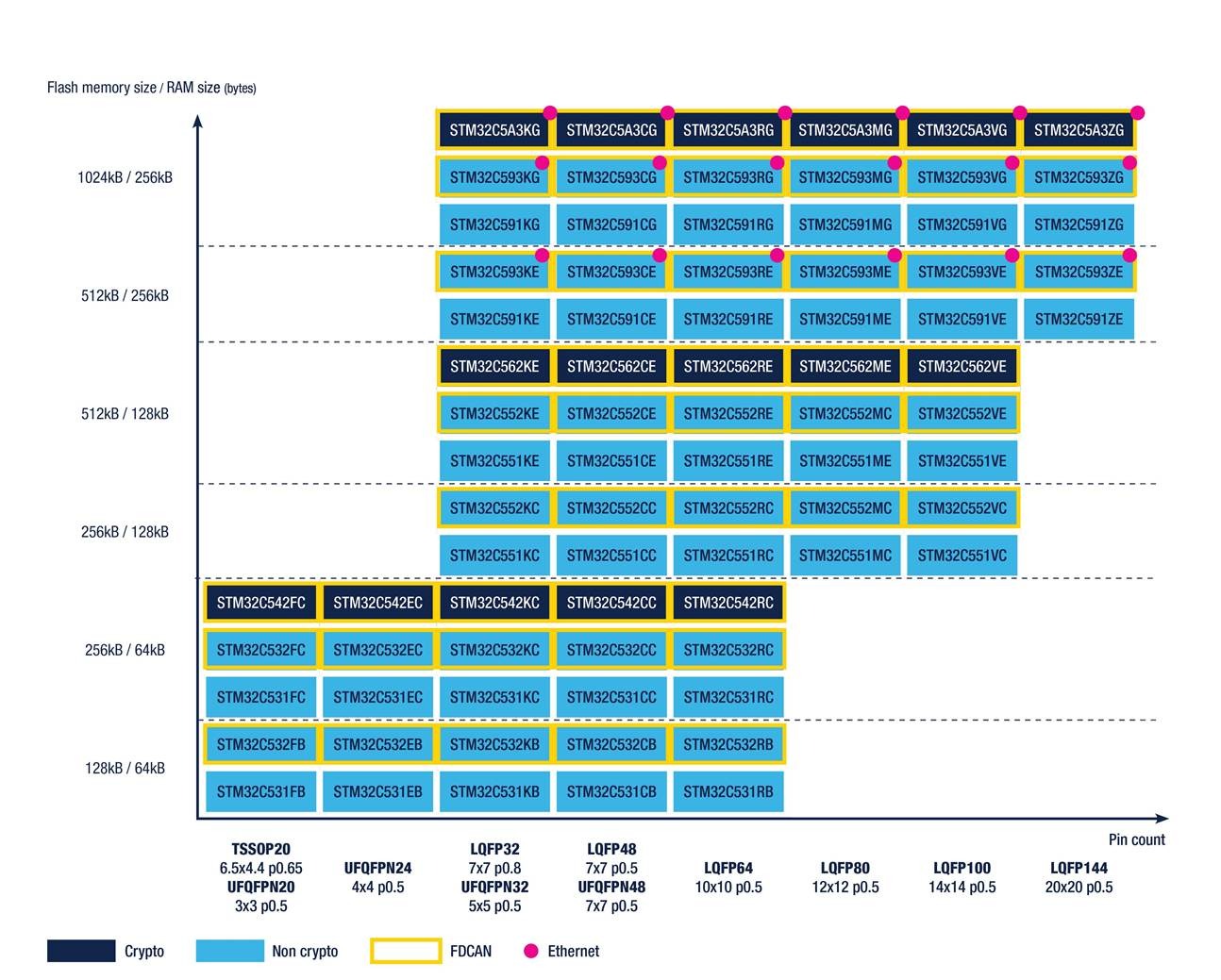

STM32C5 Family Overview
Security features are a consistent focus throughout the whole STM32C5 series which includes embedded protection mechanisms for Flash and SRAM, such as readout protection, write protection, hidden memory regions and a true random number generator. The STM32C542xx, STM32C562xx, and STM32C5A3xxx device families feature hardware accelerators reinforce cryptographic performance, including a HASH engine, and one or more AES coprocessors. The STM32C5Ax devices extend this further with a Hardware Unique Key, a DPA resistant public key accelerator, and a second AES engine with side channel protection, enabling use in higher assurance security applications.
Analog capabilities vary across device families but include between one and three 12‑bit ADCs, one or two DAC channels, comparators, and a low‑power RTC. Timer resources are extensive, supporting application domains such as motor control, real‑time control loops, precision timing, and low‑power periodic wake‑up. Across the families, the devices provide up to four 32‑bit general‑purpose timers, two 16‑bit PWM motor‑control timers, several 16‑bit general‑purpose and basic timers, and a dedicated low‑power 16‑bit timer.
The communication subsystem is similarly broad. Depending on the variant, devices support one or two I2C interfaces, an I3C interface (dedicated or shared), multiple SPI instances with full‑duplex I2S capability, numerous USART and UART interfaces, one or two FDCAN units, and a USB full‑speed device interface. The STM32C5A3xxx and STM32C593x families additionally integrates an Ethernet MAC and a single‑pair Ethernet interface, allowing use in connected industrial, automation and edge‑processing scenarios.
All members of the STM32C5 series support operation from a 2.7 V to 3.6 V supply and are designed for use across extended industrial temperature ranges up to +125 °C ambient. All families incorporate a comprehensive range of power saving modes intended to support low energy and battery powered applications without sacrificing responsiveness.
The STM32C5 package options span from compact 20‑pin formats up to highly integrated 144‑pin packages, enabling the STM32C5 series to address a broad spectrum of embedded designs, from space‑constrained endpoints to feature‑rich control systems.
Design Support
The STM32C542xx, STM32C562xx, and STM32C5A3xxx device families are supported by a comprehensive suite of development boards. STMicroelectronics STM32 Nucleo development boards provide an affordable and versatile platform for evaluating STM32 microcontrollers and rapidly prototyping new designs. They allow users to experiment with a wide range of performance and power‑consumption profiles offered by the STM32 families, including configurations that incorporate internal or external SMPS regulators to significantly reduce power consumption in Run mode on compatible boards.

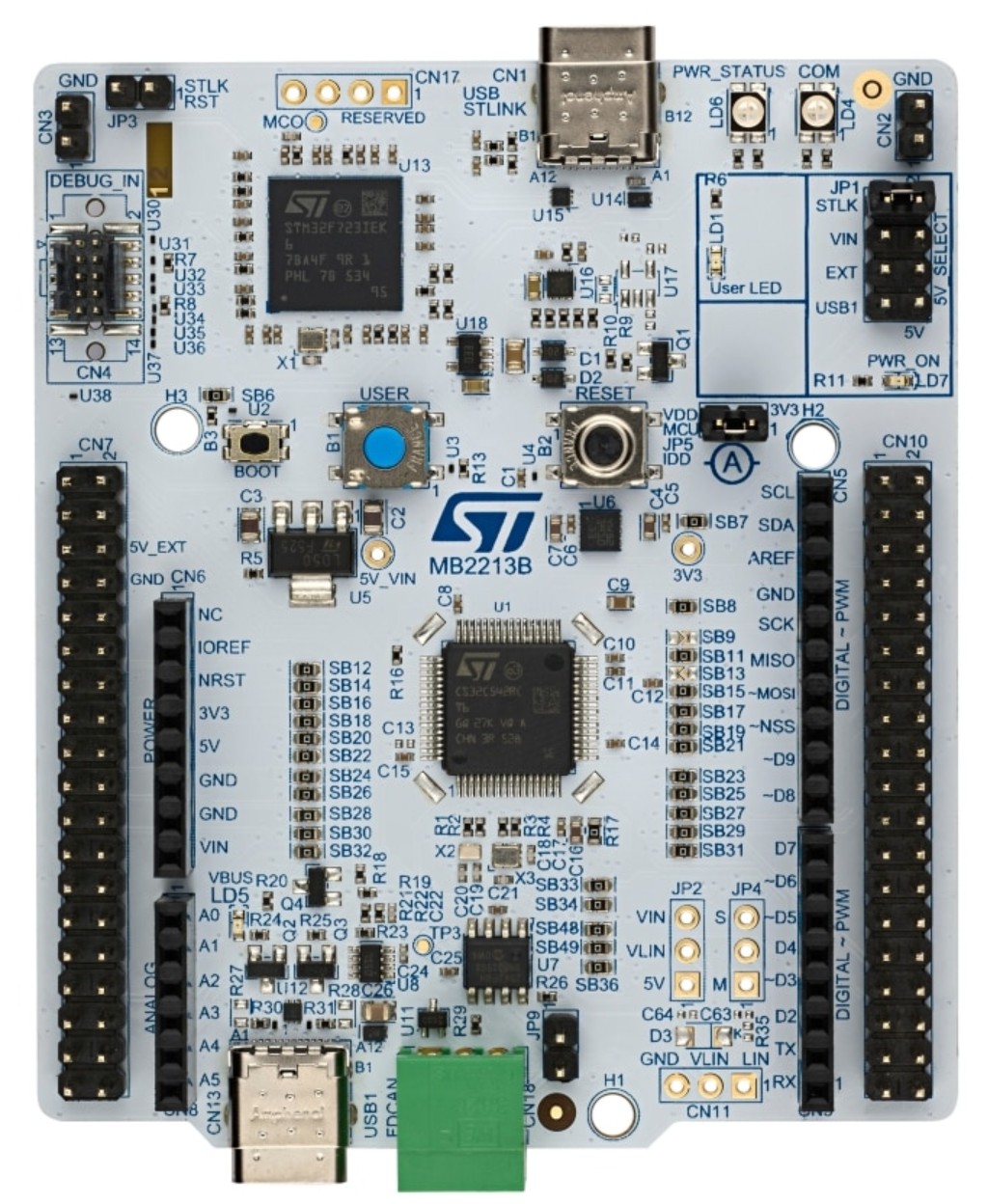

The Nucleo‑64 boards, such as those featuring STM32C542 (NUCLEO-C542RC) and STM32C562 (NUCLEO-C562RE) devices, offer a compact development platform designed around a 64‑pin MCU footprint. These boards maintain broad compatibility with expansion ecosystems thanks to their support for the ARDUINO® Uno V3 connector and the ST morpho headers, enabling straightforward integration of numerous existing shields and accessories. This makes the Nucleo‑64 series well‑suited for rapid experimentation and functional validation across a wide variety of application domains.
The Nucleo‑144 boards, including variants built around the STM32C5A3 (NUCLEO-C5A3ZG) microcontrollers, extend this concept by providing additional I/O accessibility, expanded peripheral exposure, and a richer set of expansion options. In addition to the ARDUINO® Uno V3 connector extended on certain boards via the ST Zio interface the Nucleo‑144 series incorporates ST morpho connectors to give full access to the microcontroller's extensive pinout. These larger boards accommodate more complex application prototyping, particularly where a broader peripheral set or higher pin availability is required.
Both the Nucleo‑64 and Nucleo‑144 families integrate an ST‑LINK debugger/programmer, eliminating the need for any external debugging probe. This built‑in interface facilitates seamless programming, debugging, and communication with host development tools.
All boards in the STM32 Nucleo ecosystem are supported by the comprehensive suite of free software packages provided within the STM32Cube MCU ecosystem. This includes hardware abstraction layers, middleware components, and a broad collection of application examples, enabling users to begin development quickly and efficiently regardless of their target application.
The STM32C5 series raises the bar for entry‑level microcontrollers by delivering an exceptional performance‑to‑cost ratio, opening the door to a wide spectrum of applications that previously required higher‑tier devices. Its combination of processing capability, integrated peripherals, and scalable memory makes it ideal for IoT endpoints, industrial automation systems, PLCs, motor‑control drives, sensor and condition‑monitoring equipment, edge‑processing nodes, wireless gateways, secure connected devices, measurement and instrumentation tools, smart‑home and consumer appliances, robotics platforms, and modern building‑automation systems.
Anglia is offering customers a FREE evaluation kit and samples of the cost‑effective, high‑performance STM32C5 series of MCUs from STMicroelectronics, please fill in the form below to register your interest now.
Free samples are subject to availability.
