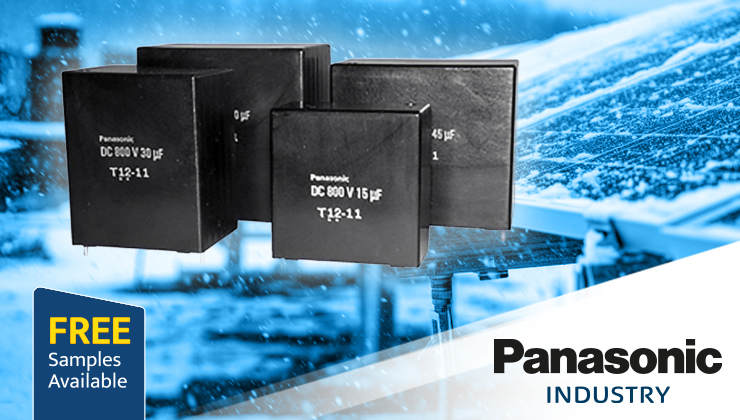

The EZPV Series from Panasonic delivers a highly versatile solution for DC Link and DC Filtering applications, offering a broad capacitance range and multiple operating voltage options. Engineered for safety, reliability, and long operational life, these capacitors are optimised for demanding industrial and infrastructure environments.
The EZPV Series utilises metallised polypropylene film with a proprietary patterned construction that integrates a self-protecting fuse function.

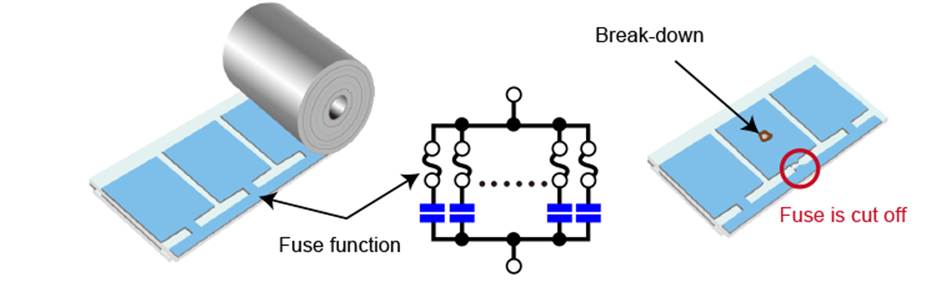

EZPV Series fuse function and safety mechanism
In the event of a localised dielectric breakdown, this mechanism isolates the affected section of the film, preventing fault propagation and eliminating the risk of catastrophic failure. While activation of the fuse function results in a minor reduction in overall capacitance, the component continues to operate safely without compromising system integrity.
EZPV Series Overview
The EZPV Series of Plastic Film capacitors are available in five voltages, 600V DC, 700V DC, 800V DC, 1000V DC and 1100V DC and a capacitance range from 3 µF to 110 µF (depending on voltage range). The film capacitors are offered in a compact, flame retardant, through hole housing with option of 2 pin or 4 pin packages.

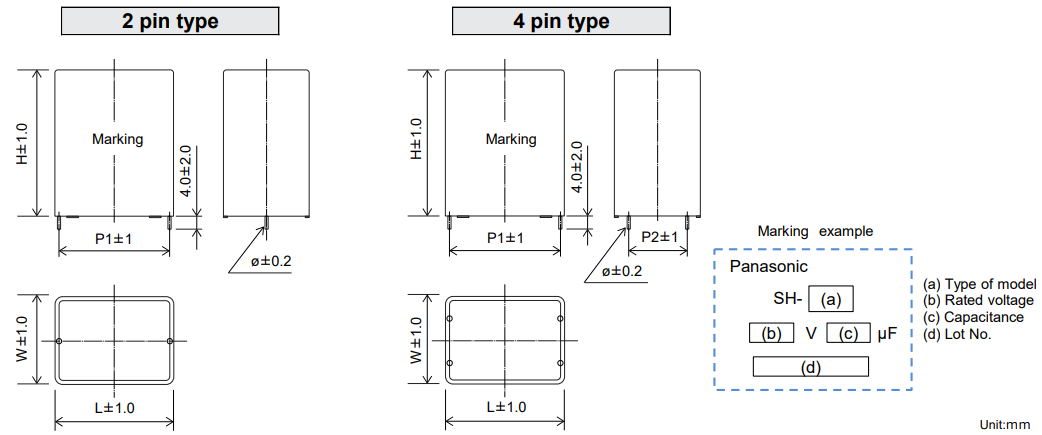

Package Style and Markings
The EZPV Series has been design for industrial and infrastructure applications that demand safety, long life and high reliability. Featuring low ESR (Equivalent Series Resistance), the EZPV Series ensures efficient thermal management and high ripple current capability, making it ideal for power electronics applications requiring robust and reliable performance under harsh conditions. The EZPV Series capacitors can handle RMS currents up to 29.3A @70°C (depending on voltage/value), operating temperature range is specified from -40°C to +105°C and automotive grade parts are compliant to AEC-Q200.
The EZPV Series film capacitors from Panasonic are suitable for a range of applications, including DC Links and DC Filters, Renewable Energy, Power Supplies, Appliances, Chargers, AC/DC & DC/DC Converters, Automotive and other Industrial and Infrastructure equipment which requires safe, robust, reliable and long-life operation.
The EZPV Series film capacitors deliver long life, high reliability, and enhanced safety, supporting mission-critical systems where failure is not an option.
Anglia are offering customers FREE samples of the EZPV Series DC Link Film Capacitors from Panasonic, please fill in the form below to register your interest now.
Free samples are subject to availability.
