In today’s fast‑moving electronics world, robust circuit protection is essential for ensuring long-term reliability and safety. Taiwan Semiconductor’s latest snapback (Super Clamp) TVS technology incorporated into the LTD7S24CAH device marks a significant step forward in protecting sensitive circuits from transient voltage events. While no single device suits every application, this new snapback approach delivers stronger, faster, and more efficient protection—making it a compelling choice across consumer, industrial, and automotive markets where failures and warranty returns can be costly.

The Importance of TVS Protection

Transient electrical events—both natural and man‑made—have always existed, but modern electronics are far more vulnerable to them than early solid‑state systems. As semiconductor designs evolved to integrated circuits and now VLSI technology, sensitivity to surges increased dramatically. Today, robust protection is essential on both ac/dc power lines and the I/O interfaces that connect equipment to the real world.

Take lighting as an example. Traditional magnetic‑ballast systems were inherently resilient. But as the industry shifted to high‑frequency electronic ballasts and now LED drivers, vulnerability to nearby lightning strikes and utility switching events grew. At the same time, manufacturers began offering 5‑ to 10‑year warranties—raising the stakes for preventing surge‑related failures.

Beyond protecting increasingly delicate electronics, designers must also meet stringent global standards, including IEC61000-4‑2/3/4/5, IEEE C62.41 ringing‑wave tests, and automotive requirements such as ISO7637‑2 and ISO16750‑2. Reliable TVS protection isn’t just good engineering—it’s mandatory for compliance and long‑term product performance.

Super Clamp TVS Technology

An ideal TVS device would tightly regulate voltage—protecting a 24 V bus with a true 24 V limit—while responding instantly, surviving unlimited surge events without degradation, offering long-life, high-energy capability, and failing safely under extreme conditions. It would also maintain its protection voltage regardless of temperature. Snapback (Super Clamp) TVS technology moves the industry closer to this ideal. Unlike conventional TVS diodes that clamp at a fixed high voltage during a surge, Super Clamp devices “snap back” to a much lower clamping level once conducting. This behaviour, made possible through advanced silicon engineering, significantly reduces stress on low‑voltage components and offers a far superior clamping ratio.

Because of its low clamping voltage and self‑resetting capability, the LTD7S24CAH Super Clamp device allow designers to specify lower‑rated components elsewhere in the system—an immediate BOM‑cost advantage in 24–48 V motor control, power‑train, and DC‑link capacitor protection circuits. In contrast, traditional TVS devices behave more like power Zener diodes and cannot offer the same combination of performance and efficiency.

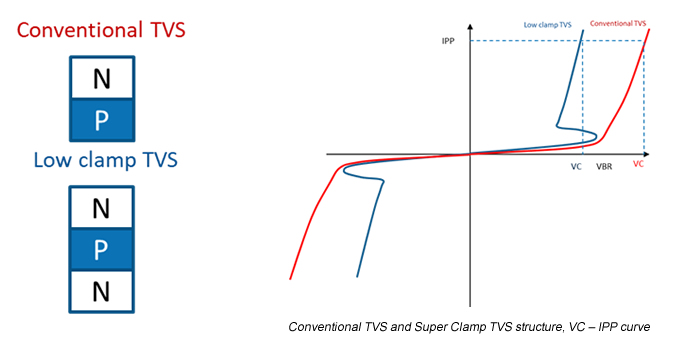

Super Clamp TVS Structure

Super Clamp TVS devices also respond faster than GDTs, MOVs, avalanche diodes, or thyristor‑based TVSs, with endurance limited only by die temperature rather than cumulative degradation. This makes them especially suitable for applications requiring long‑term reliability under repetitive surge stress.

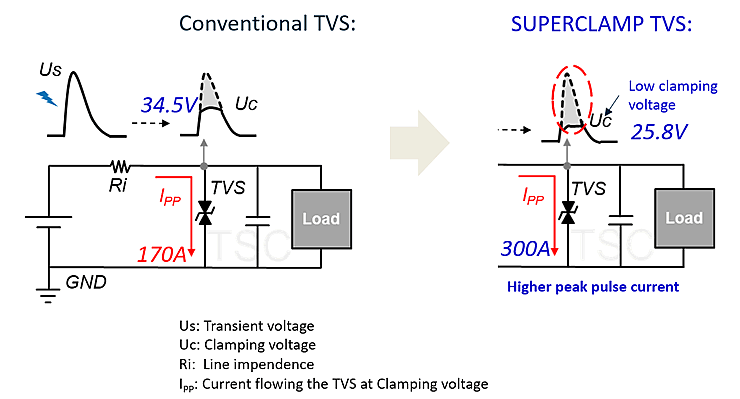

Performance Comparison of Conventional TVS vs. Super Clamp TVS

The standout feature of the LTD7S24CAH Super Clamp device from Taiwan Semiconductor is the typical clamping voltage of just 24 V and peak impulse current capability of 300A (tp = 10/1000 µs). Its low clamping performance protects MOSFETs and DC‑link capacitors more effectively and often enables the use of lower‑cost components. Supplied in a compact DO‑218AB package, a single LTD7S24CAH Super Clamp device can handle roughly 300 A, compared with about 170 A for a traditional TVS of the same size—often replacing two standard devices and reducing PCB footprint.

The LTD7S24CAH surface mount Super Clamp TVS diode from Taiwan Semiconductor supports 24 V standoff, 7700‑W peak pulse power (10/1000 µs), operation up to +175°C junction, and compliance with automotive‑grade requirements. For 48 V systems, two devices can be configured in series to deliver the same snapback advantages.

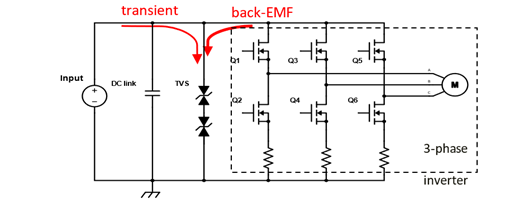

DC Link Capacitor Protection in a 48V system

A Practical Path to Smarter Design and Lower BOM Costs

As electronics continue to shrink, designers face growing pressure to meet stringent EMI and surge‑protection requirements without sacrificing size, weight, or efficiency. Super Clamp TVS technology directly addresses this challenge. By sharply reducing voltage overshoot during surge events, these devices cut power dissipation across protected components, boost system robustness, and eliminate the need to over‑engineer surrounding circuitry—helping designs pass compliance testing while staying compact and reliable.

One of the biggest advantages comes from LTD7S24CAH Super Clamp’s exceptionally low clamping ratio (V_WM to V_C). In a typical 24 V design, a standard TVS might clamp around 36 V, forcing engineers to specify 80–100 V MOSFETs just to survive transient overshoot. With the LTD7S24CAH Super Clamp device, clamping stays low enough that 40–60 V MOSFETs become viable. The same applies to DC‑link capacitors—voltage ratings can often be reduced from 65 V+ down to 35–50 V. The result: lower BOM cost, smaller components, and valuable PCB space savings, all without compromising reliability or performance.

Taiwan Semiconductor’s LTD7S24CAH brings these advantages into a single, rugged device. It delivers robust Super Clamp protection for applications across automotive (including HEV 48‑V buses and alternators), telecom/datacom, networking gear, industrial controls, avionics, battery‑management systems, chargers, and virtually any 24 V+ environment that demands higher survivability and lower system cost.
