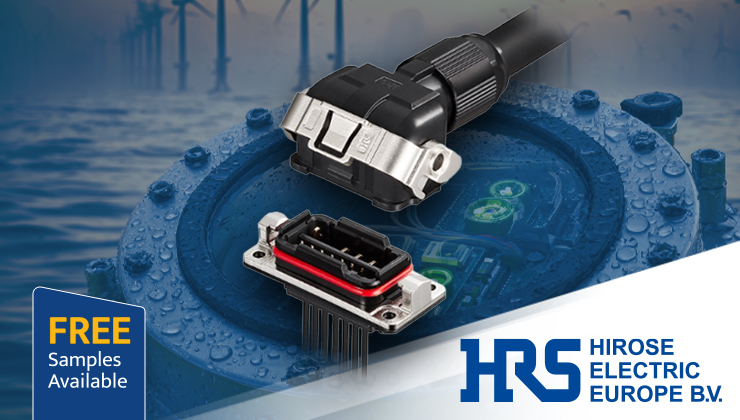

The MT Series from HIROSE has been purposefully designed to meet the stringent requirements of compact motors and industrial applications, offering a space-saving and highly efficient connectivity solution. This innovative connector integrates power, signal, and brake connections into a single compact unit, significantly reducing assembly complexity while optimising panel space.
At the heart of the MT Series is a simple yet robust one touch lever-lock mechanism, engineered to ensure quick and secure assembly. This design not only streamlines installation but also minimises the risk of waterproofing failures, delivering consistent and reliable performance in demanding environments. When mated, the connector achieves an IP67 ingress protection rating, safeguarding against dust and water intrusion. Combined with exceptional vibration resistance, the MT Series guarantees stable connections even under harsh operating conditions.
The MT Series connectors are fully compliant with UL, CSA, and TÜV safety certifications, meeting rigorous industry standards for electric motors, powertrains, and industrial systems. This ensures peace of mind for designers and manufacturers seeking high-quality, globally recognised solutions.
MT Series Introduction
Designed for versatility, each MT Series connector can accommodate 6 power contacts and 8 signal contacts, enabling seamless integration of multiple functions within a single interface. Power contacts are rated up to 4A per pin with 22 AWG crimps, or up to 7A per pin with 18 AWG crimps, while signal contacts are rated at 1A, providing robust performance for a wide range of applications.

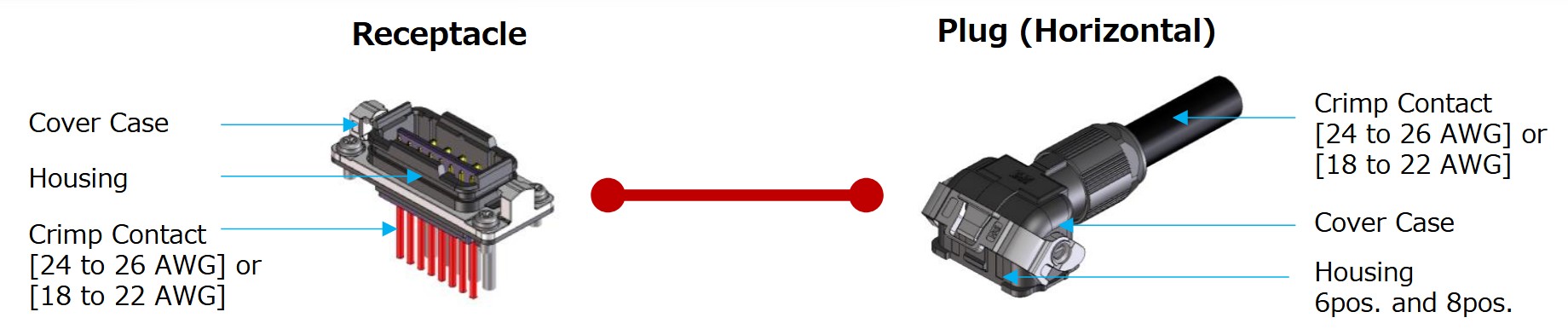

MT Series Functional Diagram
Originally developed for motor systems, the MT Series offers outstanding vibration resistance, making it ideal for applications where mechanical stress is a concern—such as agricultural machinery, industrial equipment, and outdoor installations. The IP67 waterproof rating further enhances durability, ensuring reliable operation in environments exposed to moisture, dust, and extreme conditions.
The MT Series is suited to a range of applications including Industrial Equipment, Motors and Powertrains and other systems that require waterproof, vibration resistant, space-saving and high-performance power and signal connectivity.
Achieve secure, space-saving connectivity in harsh environments with HIROSE's MT Series—IP67-rated, vibration-resistant connectors designed for demanding industrial systems.
Anglia are offering customers FREE samples of the MT Series Hybrid Power & Signal Waterproof Connector from HIROSE, please fill in the form below to register your interest now.
Free samples are subject to availability.
