Introducing the STM32WBA MCU from STMicroelectronics featuring ultra-low power and integrated Bluetooth Low Energy technology, ideal for wireless IoT devices. Evaluation board and samples available from Anglia.

The STM32WBA wireless microcontroller Series from STMicroelectronics brings designers the performance, efficiency, and security required for Bluetooth® Low Energy enabled applications.

The STM32WBA52 multiprotocol wireless and ultralow power device family embeds a powerful and ultralow power radio compliant with the Bluetooth® SIG Low Energy specification 5.4 alongside a high-performance Arm Cortex-M33 32-bit RISC core which operates at a frequency of up to 100 MHz.. The devices integrate a 2.4 GHz RADIO supporting the Bluetooth Low Energy standard and other proprietary protocols if required, extended far end communications range is also possible thanks to +10 dBm output power. The Cortex-M33 core features a single-precision floating-point unit (FPU), supporting all the Arm single-precision data-processing instructions and all the data types. The core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) that enhances the application security.

Focusing on the Bluetooth® Low Energy 5.4 protocol, the STM32WBA series allows non-expert developers to easily add wireless communication to their device at an affordable cost. Leveraging the STM32U5 architecture, the STM32WBA series is an ultra-low power platform and offers inherited digital and analog peripherals, suitable for many applications, from industrial, to smart home and consumer markets. The ultra-low power performance of these microcontrollers allows increased battery life especially when using the advertising extension for device communication feature. The realisation of low-power end product designs is further enabled by a comprehensive set of power-saving modes.

The STM32WBA wireless MCU Series embeds large memory to sustain both applications and connectivity activities, coming with up to 1 Mbytes of flash memory and 128 Kbytes of RAM. A smart set of peripherals like ADC, touch sensing, times, make this product a self-sufficient application wireless MCU.

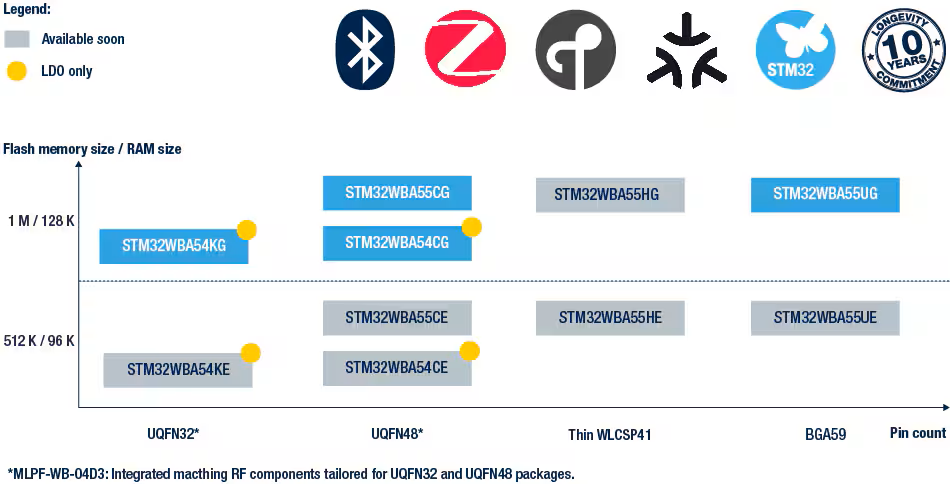

STM32WBA series overview

For IoT devices STMicroelectronics recognise that security is paramount, the STM32WBA Series offer security foundation compliant with the TBSA (trusted-based security architecture) requirements from Arm. They embed the necessary security features to implement a secure boot, secure data storage, and secure firmware update. Besides these capabilities, the devices incorporate a secure firmware installation feature that allows the customer to secure the provisioning of the code during its production. A flexible life cycle is managed thanks to multiple levels readout protection and debug unlock with password.

Click below to see an overview of the STM32WBA microcontroller

Firmware hardware isolation is supported thanks to securable peripherals, memories and I/Os, and privilege configuration of peripherals and memories. The devices also feature several protection mechanisms for embedded flash memory and SRAM: readout protection, write protection, secure, and hide protection areas. The devices embed several peripherals reinforcing security: a fast AES coprocessor, a secure AES coprocessor with DPA resistance and hardware unique key that can be shared by hardware with fast AES, a PKA (public key accelerator) with DPA resistance, a HASH hardware accelerator, and a true random number generator. The devices offer active tamper detection and protection against transient perturbation attacks, thanks to several internal monitoring generating secret data erase in case of attack. This helps to fit the PCI requirements for point of sales applications.

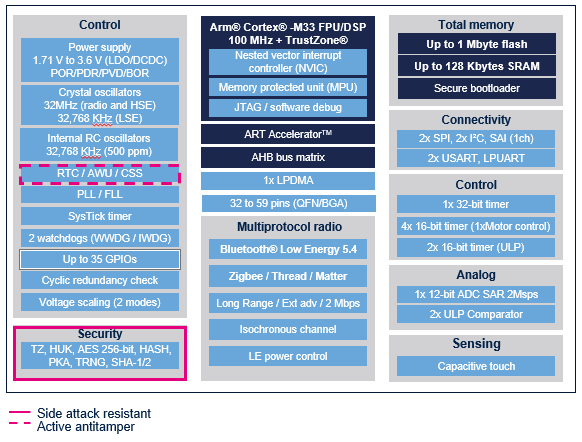

Block Diagram overview

Free Samples and Evaluation Board
Key Features
  • Includes ST state-of-the-art patented technology
  • Ultra low power 2.4 GHz radio
    • RF transceiver supporting Bluetooth® Low Energy 5.4 specification
    • Proprietary protocols
    • RX sensitivity: -96 dBm (Bluetooth® Low Energy at 1 Mbps)
    • Programmable output power, up to +10 dBm with 1 dB steps
    • Integrated balun to reduce BOM
    • Suitable for systems requiring compliance with radio frequency regulations ETSI EN 300 328, EN 300 440, FCC CFR47 Part 15 and ARIB STD-T66
  • Ultra low power platform with FlexPowerControl
    • 1.71 to 3.6 V power supply
    • -40 °C to 85/105 °C temperature range
    • Autonomous peripherals with DMA, functional down to Stop 1 mode
    • 160 nA Standby mode (16 wake-up pins)
    • 0.9 µA Standby mode with 64 KB SRAM
    • 6.5 µA Stop mode with 64 KB SRAM
    • 23 µA/MHz Run mode at 3.3 V
    • Radio: Rx 4.4 mA / Tx at 0 dBm 5.2 mA
  • Core: Arm® 32-bit Cortex®-M33 CPU with TrustZone®, MPU, DSP, and FPU
  • ART Accelerator™: 8-Kbyte instruction cache allowing 0-wait-state execution from flash memory (frequency up to 100 MHz, 150 DMIPS)
  • Power management: embedded regulator LDO supporting voltage scaling
  • Benchmarks
    • 1.5 DMIPS/MHz (Drystone 2.1)
    • 407 CoreMark® (4.10 CoreMark/MHz)
  • Clock sources
    • 32 MHz crystal oscillator
    • 32 kHz crystal oscillator (LSE)
    • Internal low-power 32 kHz (±5%) RC
    • Internal 16 MHz factory trimmed RC (±1%)
    • PLL for system clock and ADC
  • Memories
    • 512 KB or 1 MB flash memory with ECC
    • 128 KB SRAM
    • 512-byte (32 rows) OTP
  • Rich analog peripherals (independent supply)
    • 12-bit ADC 2.5 Msps with hardware oversampling
  • Communication peripherals
    • Three UARTs (ISO 7816, IrDA, modem)
    • Two SPIs
    • Two I2C Fm+ (1 Mbit/s), SMBus/PMBus®
  • System peripherals
    • Touch sensing controller, up to 20 sensors, supporting touch key, linear, and rotary touch sensors
    • One 16-bit, advanced motor control timer
    • Three 16-bit timers
    • One 32-bit timer
    • Two low-power 16-bit timers (available in Stop mode)
    • Two Systick timers
    • Two watchdogs
    • 8-channel DMA controller, functional in Stop mode
  • Security and cryptography
    • Arm® TrustZone® and securable I/Os, memories, and peripherals
    • Flexible life cycle scheme with RDP and password protected debug
    • Root of trust thanks to unique boot entry and secure hide protection area (HDP)
    • SFI (secure firmware installation) thanks to embedded RSS (root secure services)
    • Secure data storage with root hardware unique key (RHUK)
    • Secure firmware upgrade support with TF-M
    • Two AES co-processors, including one with DPA resistance
    • Public key accelerator, DPA resistant
    • HASH hardware accelerator
    • True random number generator, NIST SP800-90B compliant
    • 96-bit unique ID
    • Active tampers
    • CRC calculation unit
  • Up to 35 I/Os (most of them 5 V-tolerant) with interrupt capability
  • Development support
    • Serial wire debug (SWD), JTAG
  • ECOPACK2 compliant package
Data

The devices offer a whole host of onboard peripherals including a 12-bit ADC (2.5 msps), two comparators, a low-power RTC, one 32-bit general-purpose timer, one 16-bit PWM timer for motor control, three 16-bit general-purpose timers, and two 16-bit low-power timers. They also feature standard and advanced communication interfaces, namely two I2Cs, two SPIs, one SAI, two USARTs, and one low-power UART. Many peripherals (including radio, communication, analog, and timer peripherals) can be functional and autonomous in Stop mode with direct memory access thanks to BAM (background autonomous mode) support. Some independent power supplies are also supported, like an analog independent supply input for ADC, and radio dedicated supply inputs for the 2.4 GHz RADIO.

The STM32WBA MCU is offered in two packages: UFQFPN in 32 pin 5 x 5 mm and 48 pin 7 x 7 mm, or UFBGA in 59 pin 5 x 5 mm. Devices have an operating temperature range of -40 °C to 85 °C (105 °C junction) and operate from a 1.71 to 3.6 V power supply.

Product Longevity

The STM32WBA MCU series is also included in STMicroelectronics 10-year Longevity Program giving developers the reassurance to use the product in new designs.

Evaluation Board

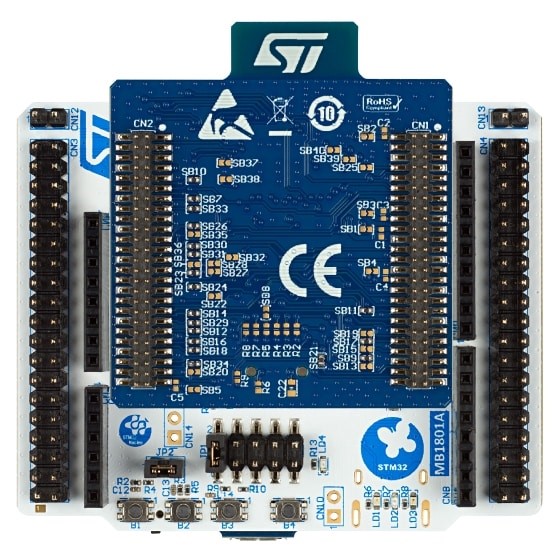

The STM32WBA wireless microcontroller Series are supported by the NUCLEO-WBA52CG development board which allows designers to quickly explore all the features of the microcontroller and accelerate development time.

The NUCLEO-WBA52CG development board features the STM32WBA microcontroller with Bluetooth® Low Energy wireless and ultra-low-power embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy SIG specification v5.4. The board has ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The development board is fully supported by the proven STM32Cube ecosystem which helps fasten time-to market.

Anglia are offering customers a FREE evaluation board and samples of the STM32WBA series of ultra-low power microcontrollers with integrated Bluetooth Low Energy from STMicroelectronics, please fill in the form below to register your interest now.

To register for FREE samples of the STM32WBA series of ultra-low power microcontrollers with integrated Bluetooth Low Energy from STMicroelectronics, please fill in the form below.

First name *
Last Name *
Company *
Telephone *
Email Address *
Project Name
Project Volume *
Project Description
*


FREE samples for UK and Ireland customers only, subject to availability.
