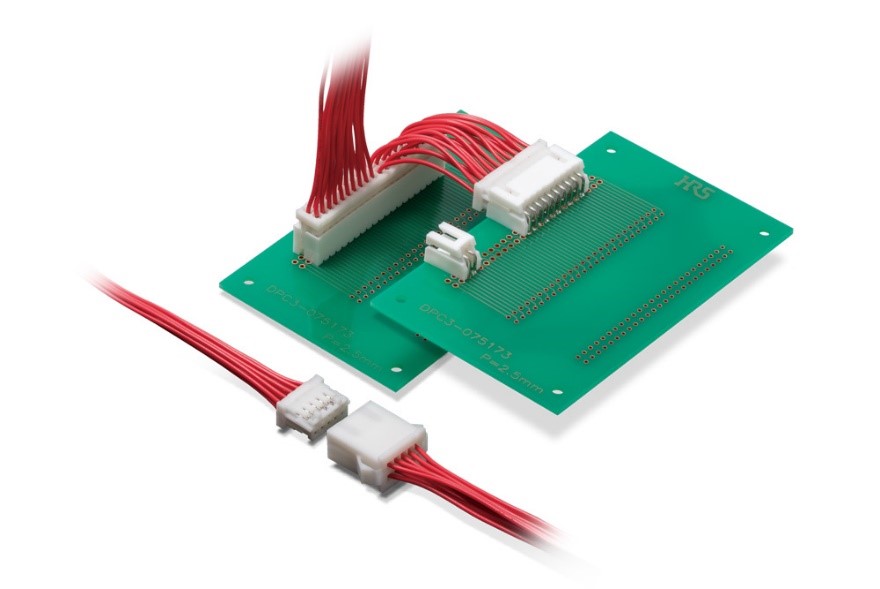

The SignalBee family of Wire-to-Wire and Wire-to-Board connectors from HIROSE offers a plethora of solutions for signal cable connections, featuring compact size combined with high-end performance. The wide variety of configurations available in the SignalBee family provides the best solutions to meet users’ application requirements.
Covering 16 series of connectors, the SignalBee family offers powerful and high-performance solutions for a wide range of application fields.
SignalBee Brochure
DF1B Series - 2.5mm Pitch, 5A Max.
Offered in 'board-to-wire' and 'in-line' configurations in single and double-row contact arrangements with 2 to 14 and 4 to 40 positions, respectively. The DF1B series can be specified with standard tin or gold plating options in straight, right angle or in-line configurations. Applicable cable size ranges from 20 AWG to 30 AWG, allowing selection of the most suitable item for the design requirements. The connectors are UL/CSA certified and have an operating temperature range of -35°C to +85°C.
Download the DF1B Catalog
DF1E Series - 2.5mm Pitch, 3A Max.
The double lock system on the DF1E series prevents stress to the cable, increases the crimp contact retention force, and prevents the incomplete insertion of the crimp contact. The PCB pin header housing is molded in glass enforced resin to prevent solder cracks which can occur due to heat compression. Offered in straight, right angle and in-line configurations the connectors are available in 2 to 15 positions for the pin header and sockets and 2 to 10 positions for the in-line plugs.
The connectors are UL and C-UL certified and have an operating temperature range of -35°C to +85°C.
Download the DF1E Catalog
DF3 Series - 2.0mm Pitch, Single-Row, 3A Max.
With its low-profile design featuring a mounting height of just 7.5mm and in-line plug designed for sufficient contact crimping space, the DF3 series is ideal where the board design is space constrained. Available in 2 to 15 positions the DF3 series is offered in straight, right angle and in-line configurations.
The connectors are UL and CSA certified and have an operating temperature range of -55°C to +105°C.
Download the DF3 Catalog
DF11 Series - 2.0mm Pitch, Double-Row 2A Max.
Featuring a wide range of Wire-to-board, in-line, and board-to-board options the DF11 series enhances design flexibility. Gold or Tin plating options are available to suit various applications, and the series includes SMT products. Offered in straight, right angle, in-line and board-to-board configurations the DF11 series is available from 4 to 32 positions.
The connectors are UL and CSA compliant and have an operating temperature range of -30°C to +85°C.
Download the DF11 Catalog

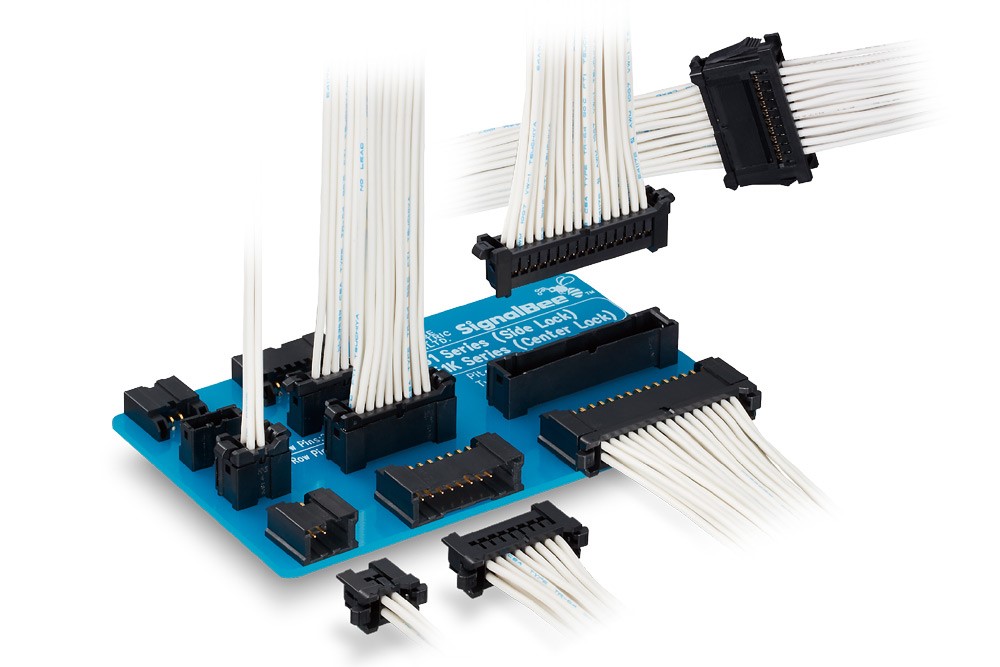

DF51 Series - 2.0mm Pitch, 3A Max.
The secure dual side-lock design on the DF51 series provides a reliable connection which prevents socket lift due to vibration or cable wrenching. A wide variety of options available on the DF51 series allow maximum design flexibility to meet various needs. Available in straight, right angle and in-line configuration there is also a branch adaptor (type DF51B) which contributes to wire saving. The DF51 series is offered in 2 to 6 positions for single row, 4 to 30 positions for dual row and 2 to 7 positions for the branch adapters.
The connectors are UL and C-UL certified and have an operating temperature range of -55°C to +105°C.
Download the DF51 Catalog
DF51K Series - 2.0mm Pitch, 3A Max.
The DF51K series offers a centre lock system as an alternative option to the dual side lock of the DF51 Series. Centre lock type is more effective for pitch directional high-density mounting on PCB layout. Available in straight and right angle configurations the DF51K series is offered in 2 to 6 positions for single row and 4 to 30 positions for dual row connectors.
Download the DF51K Catalog

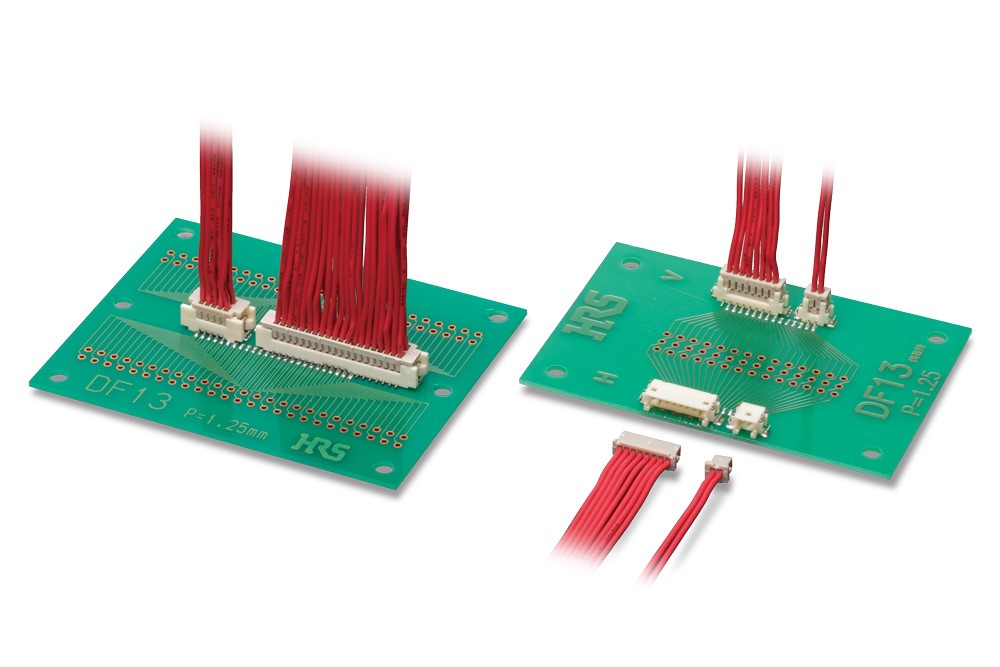

DF13 Series - 1.25mm Pitch, 2.5A Max.
The DF13 series header features a wrenching-proof box design, and completely prevents mis-insertion. The surface mounting (SMT) header is also equipped with the metal solder tabs to prevent solder peeling. Available in straight and right angle configurations the DF13 series are offered in 2 to 15 positions for single row and 10 to 40 positions for double row connectors.
The connectors are UL certified and have an operating temperature range of -55°C to +85°C.
Download the DF13 Catalog

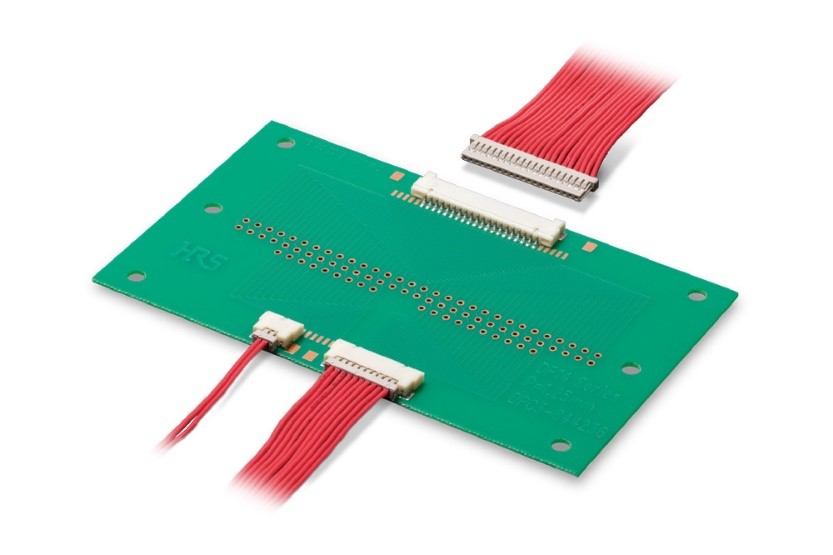

DF14 Series - 1.25mm Pitch, 1A Max.
The DF14 series is a right angle connector that comes in 2.5mm height, an offset type is also available. The connector header features a four-wall design which prevents physical damage on the board side, whilst the metal solder tabs prevent solder peel. Available in 2 to 30 positions, the DF14 series low profile design offers an ideal solution for space constrained applications.
The connectors are constructed from UL94V-0 materials and have an operating temperature range of -35°C to +85°C.
Download the DF14 Catalog

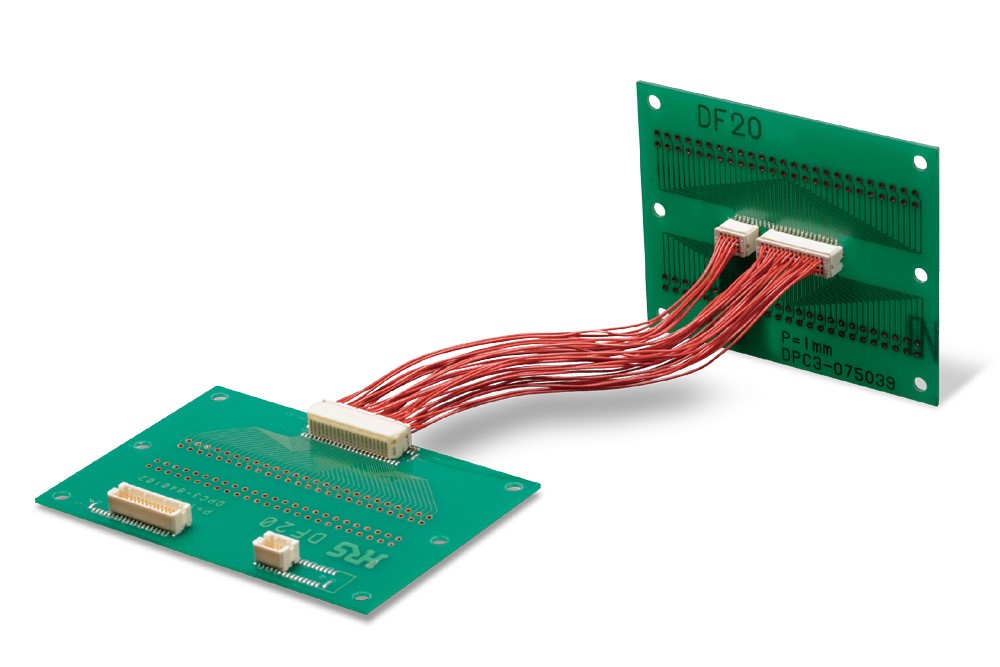

DF20 Series - 1.0mm Pitch, 1A Max.
The DF20 series features a narrow pitch and low-profile design. Providing an effective electrical connection with a 1.0mm contact wipe the connectors have thin metal solder tabs which produce a small-sized outer dimension for high mounting density. Available in straight and right-angle configurations the DF20 series is offered in 10 to 50 positions.
Download the DF20 Catalog

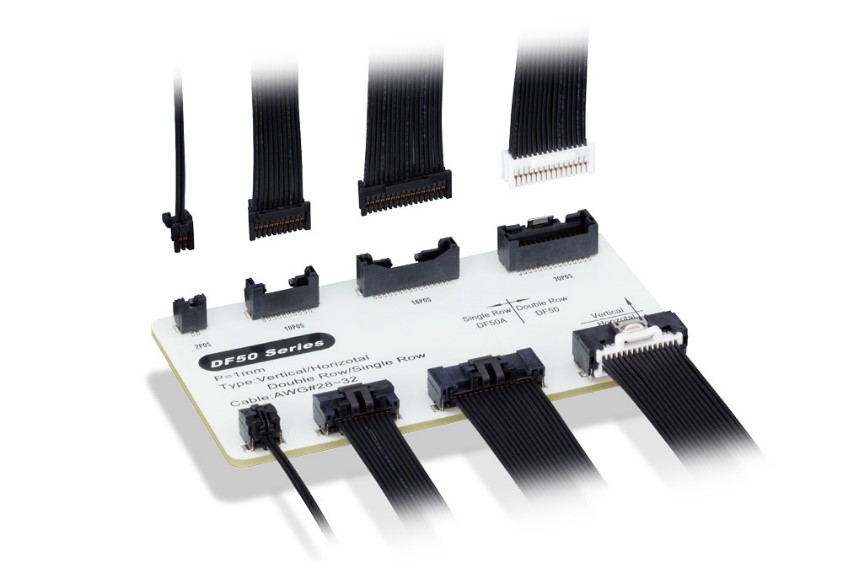

DF50 Series - 1.0mm Pitch, 2A Max.
The high reliability gold plated DF50 series features a two-point contact design with an effective mating length of 1.0mm. Thick housing wall and insertion depth protects against accidental un-mating. The DF50 series connector is production friendly providing a clear tactile click and secure mating. Supports 26 AWG wire with 1.0mm narrow pitch. Available in straight and right angle configurations the DF50 series is offered in 20 to 50 positions double row.
Download the DF50 Catalog
DF50A Series - 1.0mm Pitch, 2A Max.
DF50A series is the single-row version of the DF50 Series, its design prevents cable tangling during cable assembly and transportation. The DF50A design reduces external stress on the locking section and also features a positive lock and clear tactile click to ensure a secure connection. Available in straight and right angle configurations the DF50A series is offered in single row 2 to 16 positions.
Download the DF50A Catalog

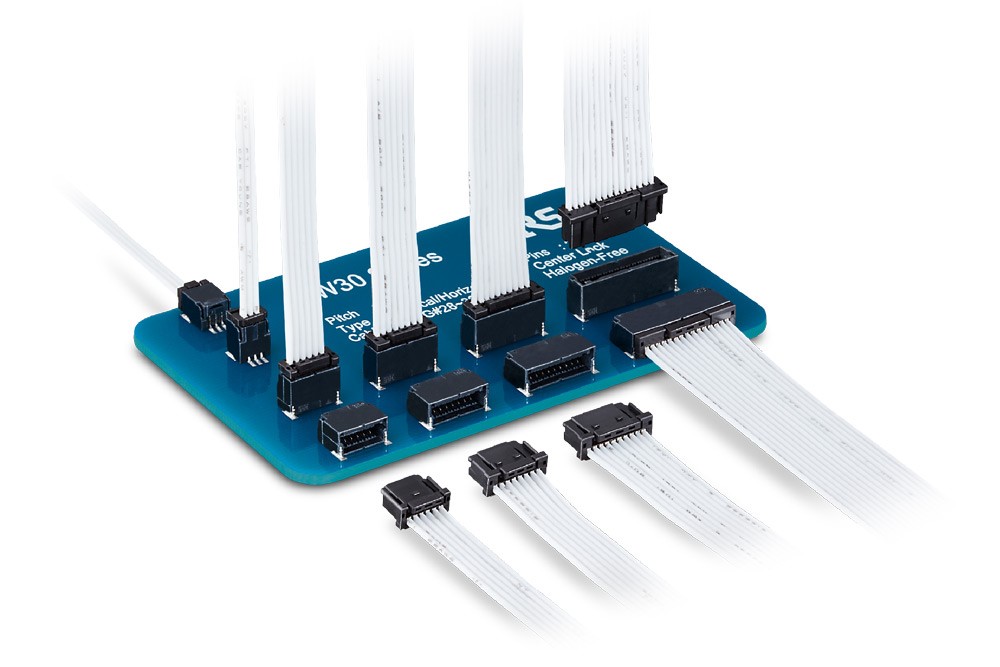

KW30 Series - 1.0mm Pitch, 1A Max.
The KW30 series is a single-row connector system with gold-plated and two-point contact "rib design" which provides a secure fit when mating, preventing shock and rattling. Its high vibration resistance ensures safe use even in the harshest of environments. Available in straight and right-angle configurations the connectors are offered in 2 to 15 positions.
Download the KW30 Catalog
DF52 Series - 0.8mm Pitch, 2.5A Max.
Featuring thick housing walls yet still offering a compact design, the DF52 series produces a strong, robust connector that resists damage. The box shaped crimp contact prevents deformation during assembly and contributes to the overall stability and strength of the connectors. Available in right angle configuration the DF52 series is offered in 2 to 20 positions.
The connectors are constructed from UL94V-0 materials and have an operating temperature range of -40°C to +85°C.
Download the DF52 Catalog

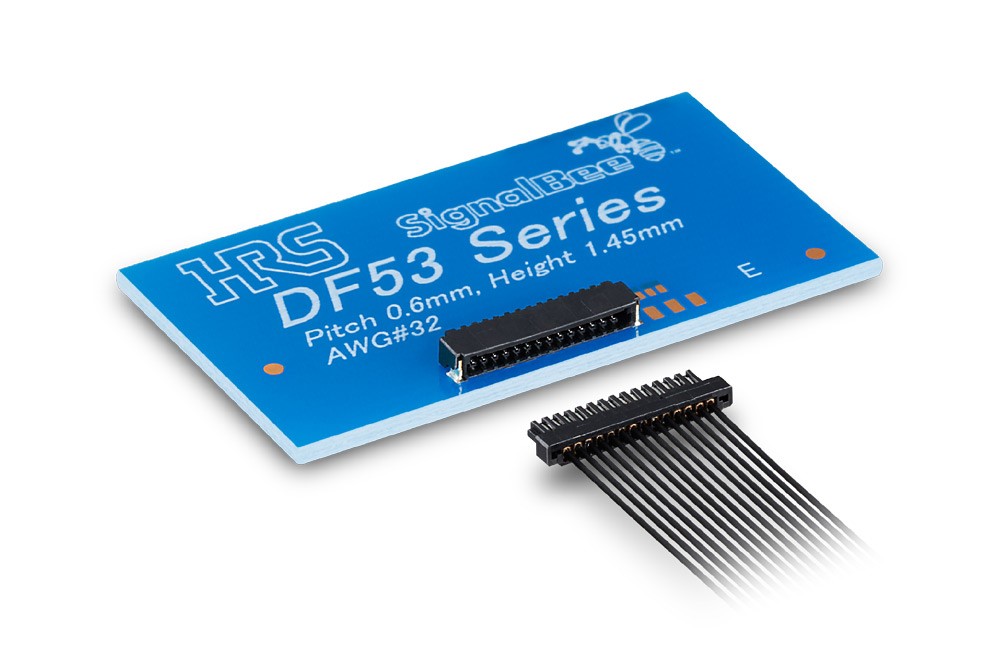

DF53 Series - 0.6mm Pitch, 1.3A Max.
The DF53 series is the industry's smallest 0.6mm pitch crimp connector. Supporting 1.3A Max., makes it ideal for connecting batteries in applications with space constraints such as wearable devices. The DF53 series achieves both downsizing and robust construction. Available in right angle configuration the DF53 series is offered in 2 to 20 positions.
The connectors are constructed from UL94V-0 materials and have an operating temperature range of -55°C to +85°C.
Download the DF53 Catalog

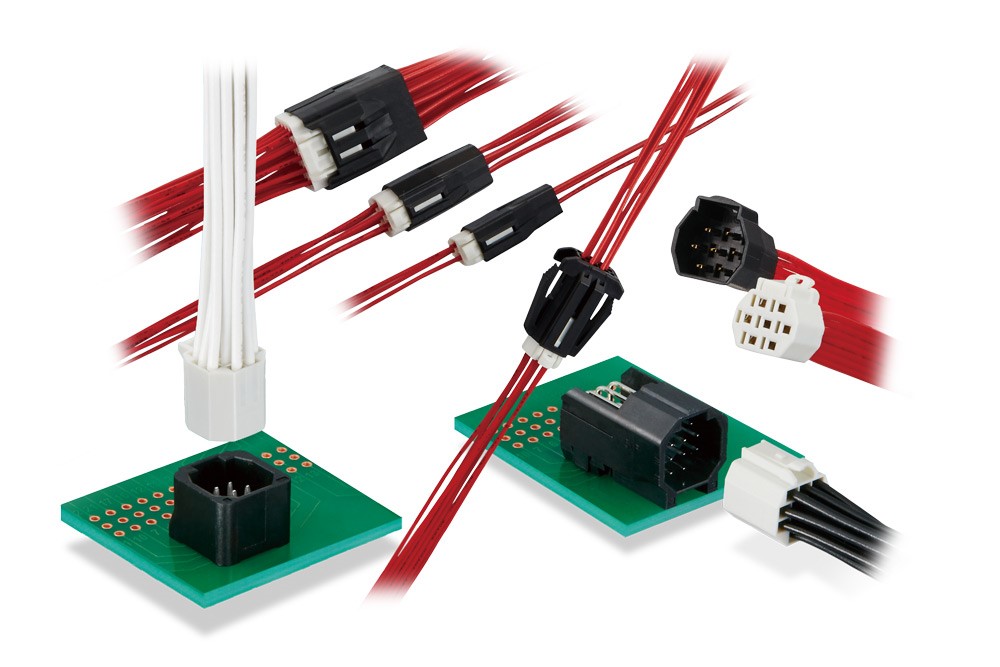

DF62 Series - 2.0 x 2.2mm Pitch, 4A Max.
The DF62 series offers a slim and small connector ideal for applications which require wiring in narrow spaces. The contacts are arranged in a grid, reducing the diagonal size and the connector outline is rounded for smooth wiring. The design of the DF62 series helps to save precious space and makes these connectors virtually tangle free. No metal component is exposed, eliminating the possibility of electrical arcing between the connector and the inside of a metal conduit. Available in straight, right angle and in-line configurations, the DF62 series is offered in 2 to 24 positions.
The connectors are UL and C-UL certified and have an operating temperature range of -35°C to +105°C.
Download the DF62 Catalog

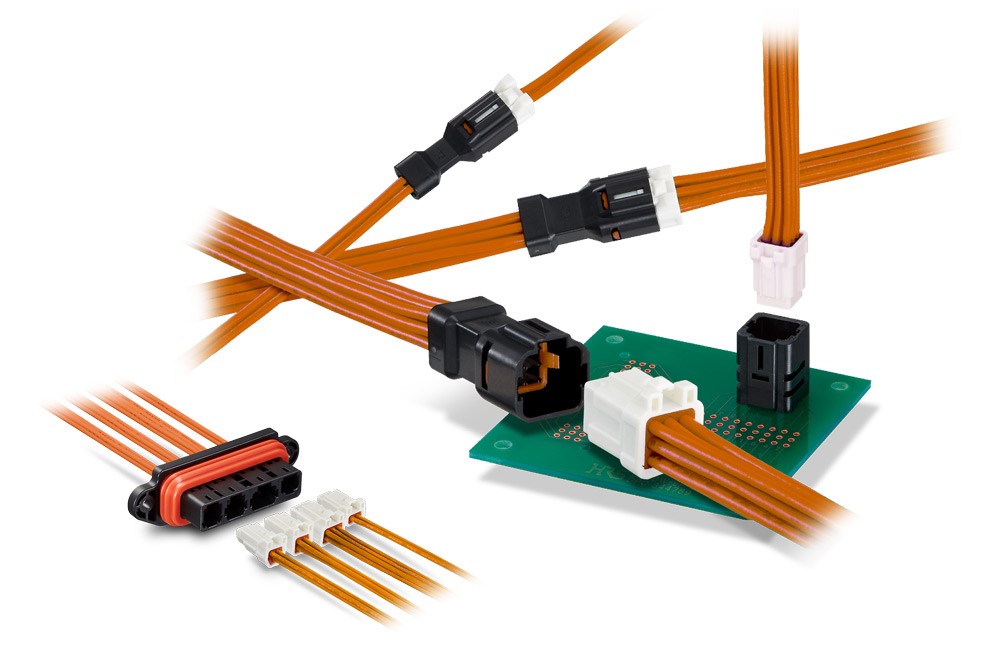

DF62W Series - 2.2 x 2.2mm Pitch, 5A Max.
The DF62W expands on the capability of the DF62 series offering a slim and smooth outline suitable for wiring in narrow spaces and which has an integrated wire seal and housing seal that allows the connectors to support waterproofing equivalent to the IP67 standard. A panel waterproof type (DF62WP) is also available. Available in straight and in-line configuration the DF62W series is offered in 2 to 9 positions.
The connectors are UL and C-UL certified and have an operating temperature range of -40°C to +105°C.
Download the DF62W Catalog
The wide range of options available in the SignalBee family make it your best choice for signal cable connectors, it’s your Ace in the pack.
Anglia are offering customers FREE samples of the SignalBee family of connectors from HIROSE, please fill in the form below to register your interest now.
Free samples are subject to availability.
