The Apex TG.66 is a hinged monopole antenna designed to cover all global 5G/4G frequencies between 600MHz and 6GHz.
Despite its super miniature size, measuring in at just 70.3 x Ø10mm, the TG.66 has omnidirectional radiation patterns and provides stable gain across the hemisphere. The antenna packs an incredible punch for its size and performs excellently, with efficiencies above 45% across the entire 5G/4G spectrum when positioned on the edge of a small ground plane of just 120 x 45mm in size.

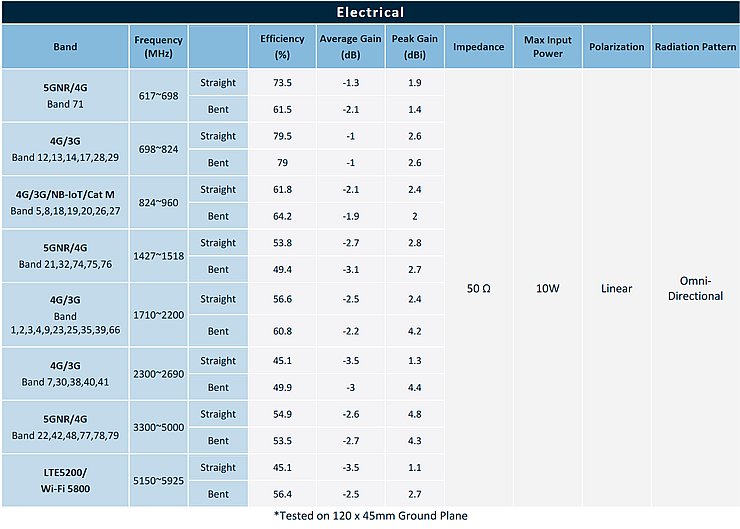

Specifications by frequency band
The TG.66 utilizes a sleek, robust PC enclosure, and its’ small size allows is to be mounted where space is at a premium. The TG.66's has a rotatable 90° hinged SMA connector allowing it to be covertly installed on next generation 5G gateways, routers, medical devices, or POS Terminals, either straight or at an angle to the preferred orientation which helps to avoid other antennas or objects, helping you to get the very best in performance. This also helps with isolation by pointing the antennas in different directions when used in MIMO systems or when other antennas are present on the same device.
Taoglas are also able to offer different connector options for the TG.66 antenna as well as internal connecting cables as part of their customisation service to help the antenna assembly meet the exact needs of your application. Contact Anglia to find out more details and to discuss your requirements.
Click below for a brief introduction of the Apex TG.66 Antenna
The TG.66 has been evolved from the highly successful TG.09 and is part of the ever-growing portfolio of 5G antennas offered by Taoglas. The Apex TG.66 antenna is suitable for a range of applications including Gateways and Routers, IoT Sensors, Public Safety and Security Equipment, Point of Sales Terminals, Smart Home Automation Devices and Robotics and Autonomous Equipment.
Anglia are offering customers FREE samples of the Apex TG.66 super compact 5G/4G wideband antenna from Taoglas, please fill in the form below to register now.
Free samples are subject to availability.
