Ultra-wide band flexible antenna from Taoglas is the first in the industry to cover 5G and Wi-Fi 6 applications, samples available from Anglia

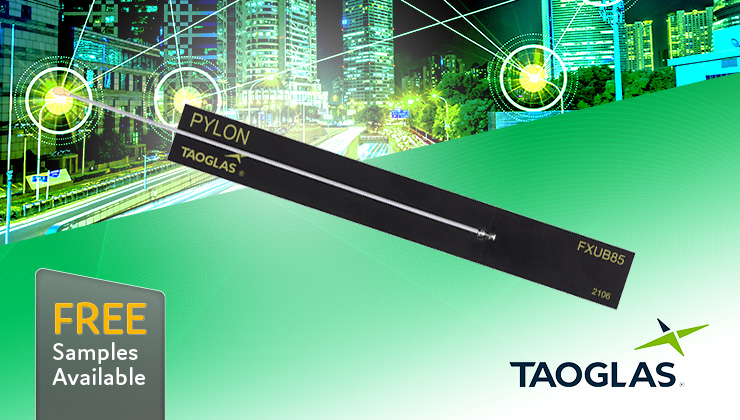

Taoglas have released the ultra-wideband Pylon FXUB85 flexible PCB antenna designed for the next generation of connectivity, the antenna provides best-in-class performance for all 5G sub 6 GHz (FR1) and Wi-Fi 6 applications. This Flexible PCB antenna features the widest bandwidth of any flex antenna currently on the market.

The Pylon FXUB85 covers the entire frequency spectrum from 600 MHz – 8 GHz and allows for coverage in the 3.5 GHz CBRS bands, the 1400 MHz 5G NR bands 74,75,76, and the 3.6 - 4.6 GHz Japan 5G NR bands 77,78,79. The antenna maintains excellent performance in all the traditional 4G LTE bands, including 4G LTE band 71 and allows for fallback to 3G/2G bands when necessary.

The Pylon FXUB85 antenna PCB has been expertly designed by Taoglas to be the smallest size possible. Measuring just 163 x 21 x 0.3mm and fitted with a self-adhesive pad on one side, the antenna can be neatly placed in the next generation of connectivity devices. As devices become more compact, the Pylon alleviates size constraint issues, its flexible structure means it can conform to the application enclosure shape allowing it to be positioned for optimal performance. The antenna design also allows it to perform well at a reasonable distance from a ground plane, typically 20mm, and has demonstrated ease of integration into complex end user equipment.

The Pylon FXUB85 antenna has a typical efficiency of more than 70% across both low and high frequency bands. The Pylon is designed to be mounted directly onto plastic or glass enclosures and is an ideal choice for any device maker that desires ease of integration and needs to keep manufacturing costs down over the lifetime of a product without compromising performance.

Free Samples
Key Features
  • Ultra-wide bandwidth, covering all 5G/4G/3G applications
  • 600 MHz – 8 GHz Operating Frequency
  • Covers Full Wi-Fi Spectrum Including Wi-Fi 6
  • Self-adhesive Flexible construction
  • Small form factor: 163 x 21 x 0.3mm
  • High efficiency
  • Excellent radiation pattern quality
  • Cable: 150mm of 1.37mm coaxial cable
  • Connector: I-PEX MHF®I (U.FL Compatible)
  • RoHS and Reach Compliant


Specifications by frequency band

The antenna is supplied with a 150mm length, 1.37mm diameter coax cable terminated to a I-PEX MHF®I connector which is fully compatible with a U.FL connector. Taoglas are also able to offer different cable lengths and alternate connectors as part of their customisation service to help the antenna assembly meet the exact needs of your application. Contact Anglia to find out more details and to discuss your requirements.

The Pylon FXUB85 antenna is suitable for a wide range of applications including IoT and Connected Devices, UAVs and Autonomous Vehicles, Precision Tracking Devices, Industrial Robotics and Factory Automation, Sensor Nodes, Digital Signage and Wearables

Anglia are offering customers FREE samples of the ultra-wideband Pylon FXUB85 flexible PCB antenna from Taoglas, please fill in the form below to register now.

To register for FREE samples of the ultra-wideband Pylon FXUB85 flexible PCB antenna from Taoglas, please fill in the form below

First name *
Last Name *
Company *
Telephone *
Email Address *
Project Name
Project Volume *
Project Description

FREE samples for UK and Ireland customers only, subject to availability.
