Introducing Multi Band LTE Cat 1 Module & Modem Card with 2G / 3G Fallback for Seamless Global Connectivity from Thales

ADV title

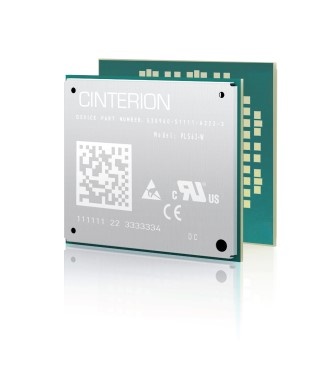

Thales PLS62-W wireless module and MPLS62-W modem card deliver highly efficient Multi Band Cat 1 LTE connectivity and seamless fallback to 3G and 2G for global IoT solutions.

The leading edge solution enables M2M optimized speeds of 10Mbit/s download and 5Mbit/s uplink making it ideal for industrial IoT applications that require the longevity of LTE networks along with continuous coverage in regions where 4G is still emerging.
The PLS62-W wireless module and MPLS62-W modem card feature a powerful Java® ME 3.2 embedded system enabling fast and easy application development along with reduced Total Cost of Ownership due to shared resources and a quick time to market. The PLS62-W module and MPLS62-W modem card are well suited for a wide range of applications such as global track and trace, smart metering, fleet management solutions, vending machines and digital signage.

Complete Global IoT Connectivity

The PLS62-W module and MPLS62-W modem card provide worldwide coverage and reliability through roaming over various global wireless networks. It offers 12 Band FDD-LTE, Seven Band 3G HSPA/UMTS (WCDMA/FDD) and Quad Band 2G GSM. A powerful Java® embedded system leverages the latest Java ME 3.2 platform enabling fast and easy application development by sharing internal resources such as memory, a large existing code base and proven software building blocks. This helps simplify product design and logistics while lowering Total Cost of Ownership (TCO).

The PLS62-W module and MPLS62-W modem card also use multi-threading programming to simultaneously host and run multiple applications and protocols. An extended security concept with the latest TLS/SSL engine provides secure and reliable TCP/IP connectivity while an enriched internal flash file system enables free firmware updates over-the-air (FOTA) when required.


Free Dev Board Key Features
  • Available in Module and Modem card format
  • Global region support
  • LTE Cat-1 Multi Band in Cinterion® LGA156 package (DL 10M/UL 5M)
  • LTE Bands supported: 1, 2, 3, 4, 5, 7, 8, 12(17), 18, 19, 20, 28
  • 3G Bands supported: 1, 2, 4, 5, 8, 9, 19
  • 2G Bands supported: Quad Band
  • Embedded Java System
  • IP Services
    • Embedded IP stack with IPv4 and IPv6 support
    • TCP/IP stack access via AT command and transparent TCP/UDP services
    • Secure Connection with TLS
    • Internet Services TCP/UDP server/client,DNS, Ping, HTTP, SMTP, FTP client
  • Control via standardized and extended ATcommands (Hayes, TS 27.007 and 27.005)
  • USB 2.0, UART Interface
  • ADC and I²C interface
  • Modem Card additional features
    • USB-interface through mPCIe connectors
    • U.FL main antenna connector
    • GPS antenna connector
    • Diversity antenna connector
    • 3.3 V power supply
    • 3FF "micro SIM" card holder
  • Approvals
    • RED, GCF, CE, FCC, PTCRB, IC, UL
    • AT&T, Vodafone certification and other provider approvals
Data

Industrial Plus Family Benefits

The PLS62-W module is part of the Cinterion Industrial Plus family, which leverages the latest wireless standards to deliver IoT optimized data speeds, advanced voice features and multi band capabilities to ensure seamless global coverage. They share a common footprint providing a seamless migration path to protect your IoT investment and they are available in local and global variants including 2G, 3G, CDMA, LTE and LTE Advanced. They come with full type approval (FTA) and they are certified by the largest global network operators. All Cinterion modules are compatible with Thales’s comprehensive suite of solutions, services and platforms that help enterprises Connect, Secure and Monetize IoT technology.

The MPLS62-W modem card uses the PLS62-W Industrial Plus Cinterion IoT module to provide reliable and secure connectivity to meet diverse solution needs. The MPLS62-W modem card delivers instant access to LTE cellular networks for a range of industrial IoT applications like vending machines or digital signage. The easy to integrate device easily plugs into an existing card slot. Cinterion Modem Cards offer a range of features and capabilities including soldered MIMs or plug-in SIMs, integrated GPS, IP services, embedded Java, antenna diagnostics and more. Like all Cinterion products, their rugged design, unparalleled engineering and highest manufacturing standards make them reliable in the most extreme environments and over the long life of any IoT solution. The MPLS62-W modem card can quickly plug into existing mini PCIe card slots to provide instant access to cellular networks for any industrial IoT application.

IoT Optimized Power Management

The powerful Java embedded system on-board the PLS62-W module and MPLS62-W modem card offers easy and fast application development, a broad choice of tools, high code reusability, easy maintenance, a proven security concept, on-device debugging as well as multi-threading programming and program execution.

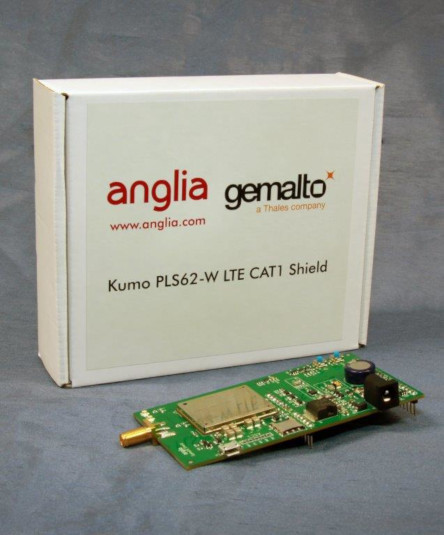

The PLS62-W module and MPLS62-W modem card are ideal for IoT applications and Anglia, in conjunction with Renesas and Thales are providing free, interactive workshops on getting ready for Narrowband IoT (NB-IoT), a Low Power Wide Area Network (LPWAN). Click here to register your interest in attending a workshop. Attendees of the workshop will also receive a “Kumo” Evaluation board which is based on the Thales PLS62-W module the Renesas Synergy™ platform microcontroller and a selection of sensor products.

Anglia are offering customers a FREE evaluation board and samples of the PLS62-W Multi Band LTE Cat 1 module or MPLS62-W modem card from Thales, please fill in the form below to register your interest now.

To register for a FREE evaluation board and samples of the PLS62-W Multi Band LTE Cat 1 module from Thales, please fill in the form below

First name *
Last Name *
Company *
Telephone *
Email Address *
Project Name
Project Volume *
Project Description
*


FREE samples for UK and Ireland customers only, subject to availability.
