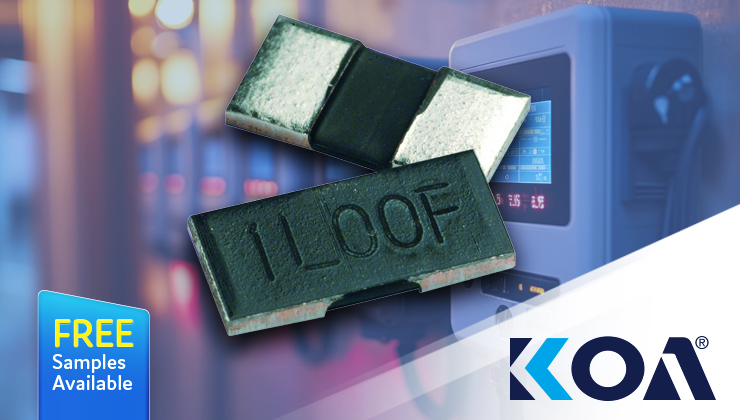

KOA’s TLR series metal plate current sensing resistors set a new standard for precision and reliability in power electronics. Designed for demanding applications, these resistors offer an ultra-low resistance range from 0.5 mΩ to 20 mΩ, enabling accurate current measurement from 7A - 100A with a TCR as low as 50ppm.
The TLR series employs KOA’s special trimming technique, which delivers two critical benefits:
This precision trimming process also eliminates laser-cut interruptions, improving pulse resistance and ensuring stable performance under transient loads. Combined with resistance tolerances as tight as ±1%, the TLR series guarantees consistent and accurate sensing in high-power circuits.

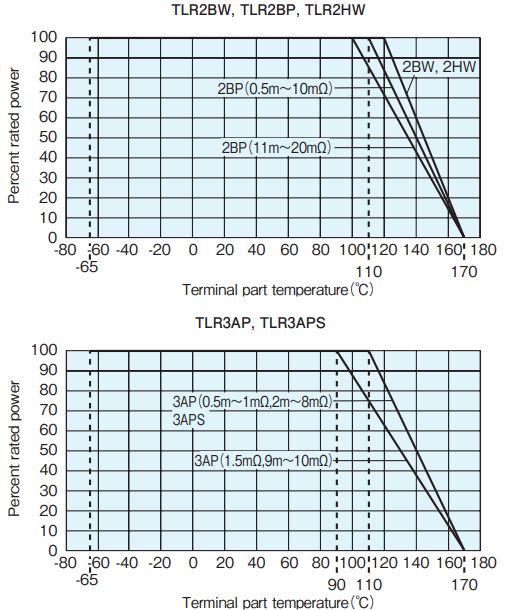

The TLR series is available in 1206, 2010 and 2512 case sizes with power ratings from 1W to 5W at 90°C to 120°C terminal temperatures (depending on series and resistance value).
The TLR series is AEC-Q200 qualified and are ideal for harsh environments and high-reliability demanded by automotive applications.
Key Features
The TLR series of metal plate current sense resistors from KOA are suitable for use in Automotive electronics, Motor Control, Industrial Equipment, Metering, Power Supplies, Battery Packs, Test & Measurement Devices, Chargers, Inverter designs and many other applications where precision, performance and reliability are required.
Click here for more information or to buy from Anglia Live.
Click here to download the TLR current sensing resistor data sheet
By combining high power handling, low inductance, and robust construction, KOA’s TLR series delivers unmatched performance for precision current sensing. Whether in automotive, industrial, or energy applications, these resistors provide the reliability and accuracy required for next-generation designs.
Anglia is offering FREE samples of the TLR series metal plate current sense resistors from KOA, please fill in the form below to register for samples now.
FREE samples are subject to availability.
