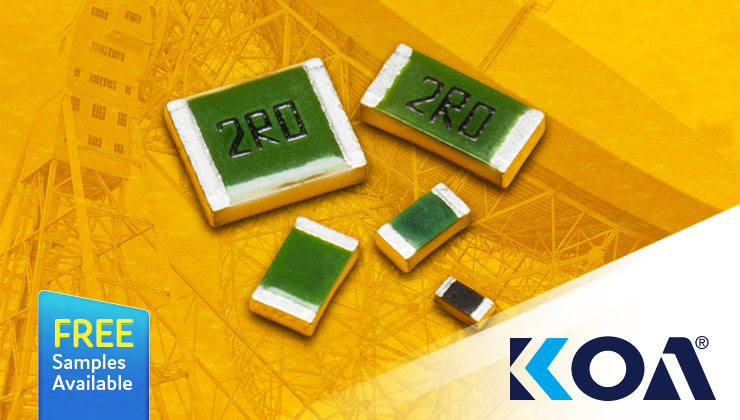

In high-performance electronics design, resilience under stress is not a luxury — it's a necessity. That’s why KOA’s SG73P series of thick-film resistors are engineered to meet the rigorous demands of modern circuit design, offering enhanced pulse withstanding capability, high power ratings, and automotive-grade reliability. Whether you're designing for automotive ECUs, industrial control systems, or medical instrumentation, the SG73P series delivers the kind of robust performance that keeps your designs stable, safe, and efficient — even under extreme conditions.
Leveraging KOA’s years of manufacturing and process know-how, a special trimming profile is used for the SG73P series allowing these parts to withstand almost 10x the pulse power of a similar sized standard resistor. For example, the 1206 version can withstand a single 10us pulse of almost 300W, compared to 40W for a similar sized standard part.
The SG73P series is available in case sizes from 0402 to 1210, with power ratings from 0.125W to 1.5W giving you flexibility in thermal management and layout optimisation. With a broad resistance range from 10Ω to 10MΩ and tight tolerance options of ±0.5%, ±1%, ±2%, and ±5%, the SG73P series offers stable T.C.R of ±100ppm or ±200ppm, ensuring minimal drift across temperature variations.
Tested to AEC-Q200 standards, the SG73P series is qualified for automotive applications, but its reliability makes it equally suitable for industrial, medical, and professional audio systems. With an operating temperature range of -55°C to +155°C, these resistors are ready for the toughest design challenges.
The SG73P series of pulse withstanding resistors from KOA are suitable for use in Automotive electronics, Industrial machines, Healthcare devices, Test & Measurement and many other applications where precision, performance and reliability are required.
Click here for more information or to buy from Anglia Live
Click here to download the SG73P pulse withstanding precision resistor data sheet
Anglia is offering FREE samples of KOA’s SG73P series to help engineers evaluate performance in real-world conditions. Whether you're prototyping or validating a new design, this is your chance to test the SG73P’s capabilities first-hand, please fill in the form below to register for samples now.
FREE samples are subject to availability.
