Introducing STM32G0, the world's first USB Type-CTM Power Delivery 3.0 MCU with a full ecosystem from STMicroelectronics.

http://www.anglia.com/newsarchive/115px_images/5272.jpg

STMicroelectronics have released the STM32G071B-DISCO Discovery board as a demonstration and development platform for the STMicroelectronics Arm® Cortex® -M0+ core-based STM32G071RB USB Type-C™ Power Delivery microcontroller. The STM32G071B-DISCO Discovery board is presented with all necessary interfaces for easy connection and interoperability with other USB Type-C™ devices.

 The STM32G0 is STMicroelectronics entry-level Arm® Cortex®-M0+ Microcontroller series. The new STM32G0 Series is not simply another Arm® Cortex®-M0+ microcontroller, it sets a new definition of what an efficient microcontroller must offer. This is all about best optimization, down to each and every detail, to offer the best value for your money and allow you to achieve your goals with the minimum BOM cost and the maximum flexibility for upgrades.

The series is offered in 2 variant, the STM32G0x0 Value line is highly competitive in traditional 8-bit and 16-bit markets and embeds an accurate internal clock allowing further cost saving. It eliminates the need to manage different architectures and the associated development overhead. And the STM32G0x1 line provides upgraded features in analog and is IoT ready with upgraded security functions. It offers a wide range of memory sizes, voltage and packages, bringing flexibility to cost-sensitive applications.

The STM32G0x0 Value Line features an Arm® Cortex®-M0+ core and runs at speeds up to 64 MHz. Setting the lowest ever price point, the STM32G0x0 Value Line makes no compromise on what matters. The STM32G0x0 Value Line comes with a very accurate internal clock making the need for an external oscillator redundant, a full set of high performing peripherals such as a faster 12-bit ADC, advanced and flexible timers, calendar RTC and communication peripherals such as the I²C, USART and SPI.

This is a new step forward to combine the need for simple, robust and efficient applications, with a performance much above the existing 8-bit architectures.

The STM32G0x0 Value line covers many memory and pin count combinations down to an 8-pin package with only few competitive devices and thus further enhances the overall cost efficiency of your projects.

Application designers starting with the STM32G0x0 Value Line benefit from being able to upgrade to STM32G0x1 at any time thanks to the full pinout compatibility, or any of the devices in the powerful STM32 portfolio at any time with an extraordinary degree of reusability of tools and application software.

The STM32G0x1 devices offer upgraded capabilities to answer the need for higher performance in analog, low-power operations or more control on secure transactions, such as the IoT applications, home-entertainment products, appliances and industrial equipment. It supports a higher temperature range up to 125 °C and a wide set of package types such as WLCSP, UFBGA, TSSOP, QFP and QFN packages.

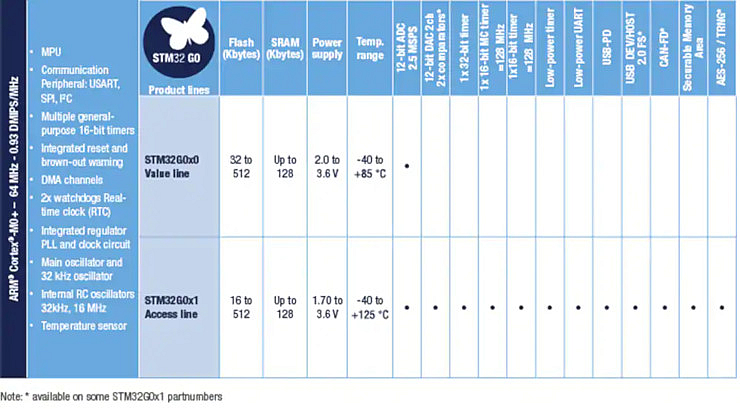

STM32G0 features overview



The STM32G0 Series enables the one-architecture-fits-all concept and is ready for tomorrow’s needs, the MCUs are efficient, robust and simple and available with 16 to 512 Kbytes of Flash memory in 8- to 100-pin packages, satisfying the needs of a large variety of applications and segments.

Click below for a brief overview of the key features of STM32G0 series MCU

Based on the STM32G0x1 series the STM32G071B-DISCO Discovery board is intended for discovery and display of USB Type-C™ port characteristics such as data role, power role, VBUS and IBUS monitoring. It offers an advanced user mode when associated with the STM32CubeMonUCPD software GUI and can be used as a USB Type-C™ and Power Delivery analyzer.

STM32G071B-DISCO Key Features



  • STM32G071RBT6 MCU featuring 128 Kbytes of Flash memory and 32 Kbytes of RAM in LQFP64 package
  • Housed in a Plastic case
  • 1” 128 x 64 pixels OLED LCD module with SPI interface
  • USB Type-C™ interface plug cable and receptacle connector accessible by door with reed sensor detection
  • 3 bidirectional current and power monitors with I2C interface to measure VBUS, CC1 and CC2 protected and isolated lines
  • On-board DC/DC converter to sustain power supply with VBUS varying from 3 V to 20 V (+/- 5 %)
  • 4 user status LEDs about USB Type-C™ configuration
  • 3 LEDs for power and ST-LINK communication
  • 4-way joystick with selection button
  • 1 reset push-button
  • Board external connectors:
    • USB Type-C™ plug cable
    • USB Type-C™ receptacle connector
    • 8-pin user extension connector including ADC, SPI, USART and I2C communication signals
    • USB with Micro-AB (ST-LINK)
  • Board internal connectors:
    • 2 x 8-pin GPIOs free pins from microcontroller (accessible internally when case is removed)
    • USB Type-C™ test points for main signals
  • Flexible power-supply options: ST-LINK USB VBUS or USB Type-C™ VBUS
  • On-board ST-LINK/V2-1 debugger/programmer with USB enumeration capability: mass storage, Virtual COM port and debug port
  • Comprehensive free software libraries and examples available with the STM32Cube™ MCU Package
  • Support of a wide choice of integrated development environments (IDEs), including IAR™, Keil® and GCC-based IDEs



Click below to view a brief overview of the STM32G071B-DISCO Discovery board

Click here for more information or to buy from Anglia Live.

Click here to download databrief for the STM32G071B-DISCO Discovery Kit

Anglia are offering customers a FREE STM32G071B-DISCO Discovery board from STMicroelectronics, please fill in the form below to register for your FREE samples now.



Requesting....



To register for a FREE STM32G071B-DISCO Discovery board from STMicroelectronics, please fill in the form below.

First name *
Last name *
Company *
Telephone *
Email Address *
Project Name
Project Volume  *
Project Description

FREE samples for UK and Ireland customers only, subject to availability.




Date Published :
06/05/2019
