Introducing the HR43 Series, High Current, Robust, IP67 Waterproof, Circular Connector for Harsh Environments from HIROSE

http://www.anglia.com/newsarchive/115px_images/5203.jpg

HIROSE has introduced the HR43 range to meet with the requirement for connectors with advanced reliability suitable for harsh environments including railway applications.

The HR43 series consists of a cable mounted plug and panel mount jack allowing for an in-line connection, constructed from aluminium alloy the connectors are lightweight yet robust to withstand vibration and shock. The connectors feature a user-friendly bayonet lock system which ensures a secure waterproof connection.

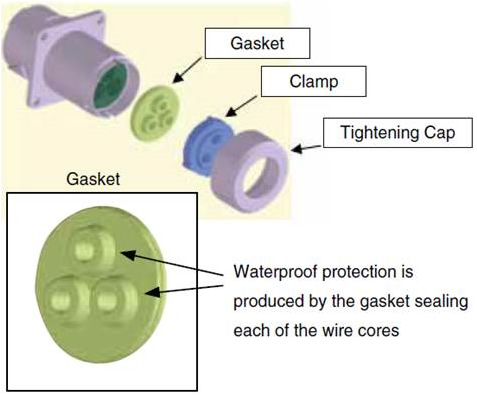

The connectors have a simple assembly procedure allowing the unique waterproof gasket to be sealed and the cable clamped simultaneously by the tightening ring without the need for additional tooling, this reduces the components needed and saves time. Furthermore the unique waterproof gasket surrounds each individual wire to seal it and provide IP67 waterproof protection in the mated condition.

Construction & Assembly

The HR43 series have a current handling capacity of 20A (amps) per contact and an AC voltage rating of 600V, the insulators are PBT resin and are flame retardant to UL94V-0. The connectors have been Salt Spray Tested (Corrosion Resistance) to 500 hours.

The HR43 is optimised for easy field assembly with a standard market commodity hand tool to terminate the crimp contacts. A contact removal tool is also available to quickly remove the contacts from the housing.

Key Features

  • Contact positions: 3
  • Current rating: 20A
  • Voltage rating: AC 600V
  • Waterproof rating: IP67
  • Locking mechanism: Bayonet
  • Mating cycles: 100
  • Contact Plating: Gold
  • Complies to Railway Applications “Rolling stock equipment - Shock & vibration tests”, Class 2 according to IEC 61373:2010
  • Operating Temperature: -25°C to +85°C

The HR43 series is suited to a wide range of applications including Industrial Equipment, Railway and Specialist Vehicles and other Harsh Environment uses.

Click here for more information or to buy from Anglia Live.

Click here to download datasheet for HR43 series

Anglia are offering customers FREE samples of the HR43 series of robust connectors from HIROSE, please fill in the form below to register for your FREE samples now.


Requesting....



To register for FREE samples of the HR43 series of robust connectors from Hirose, please fill in the form below

First name *
Last name *
Company *
Telephone *
Email Address *
Project Name
Project Volume  *
Project Description



FREE samples for UK and Ireland customers only, subject to availability.








Date Published :
01/05/2018
