8-bit Microcontroller from STMicroelectronics Delivers Uniquely Flexible Feature Set in Space/Cost-Saving 8-Pin Package

http://www.anglia.com/newsarchive/115px_images/5177.jpg

STMicroelectronics has extended the choice and freedom for budget-conscious designers by introducing its new 8-bit STM8S001 microcontroller (MCU) in the economical SO-8 package to the STM8S Value line. The STMicroelectronics STM8S Value line offers the best price/performance ratio among all their 8-bit microcontrollers. Many consumer and large-volume industrial electronic devices require basic MCU functionalities and competitive pricing.

Compared to existing low-cost MCUs, the STM8S Value line goes a step further, featuring outstanding performances, close to the STM8S Access and Performance lines, at a budget price. All STM8S Value line microcontrollers are fully compatible with the existing STM8S product portfolio, sharing the same IPs, key parameter performance and development tools.

Unlike most rivals, the STM8S001 has I2C, UART, and SPI interfaces, giving unusually versatile connectivity options. With a generous 8KB Flash memory, 1KB RAM, 128-byte EEPROM, and 3-channel 10-bit ADC also on-chip, it delivers key features of ST’s most popular STM8S003 MCU in a space-saving, low-pin-count device.

Additional features include five GPIOs, one 8-bit and two 16-bit timers, and an internal RC oscillator that allows flexible clock control from 128kHz to 16MHz. There is also a Single-Wire Interface Module (SWIM) for programming and debugging.

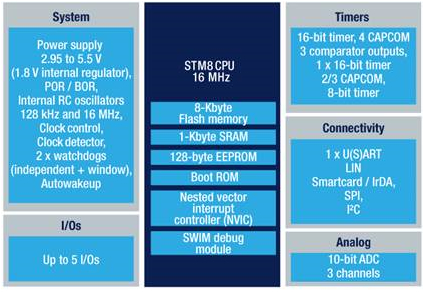

Functional Block Diagram

Fully specified for an operating temperature range from -40°C to 125°C and featuring the modern and efficient STM8 core operating at 16MHz, the STM8S001 is ideal for industrial devices like smart sensors and lighting controls, as well as consumer products such as toys, small appliances, personal electronics, PC peripherals, battery chargers, and many others.

Key Features

  • Core
    • 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
    • Extended instruction set
  • Memories
    • Program memory: 8 Kbytes Flash memory; data retention 20 years at 55 °C after 100 cycles
    • RAM: 1 Kbyte
    • Data memory: 128-byte true data EEPROM; endurance up to 100 k write/erase cycles
  • Clock, reset and supply management
    • 2.95 V to 5.5 V operating voltage
    • Flexible clock control, 3 master clock sources
      • External clock input
      • Internal, user-trimmable 16 MHz RC
      • Internal low-power 128 kHz RC
  • Clock security system with clock monitor
  • Power management
    • Low-power modes (wait, active-halt, halt)
    • Switch-off peripheral clocks individually
    • Permanently active, low-consumption power-on and power-down reset
  • Interrupt management
    • Nested interrupt controller with 32 interrupts
    • Up to 5 external interrupts
  • Timers
    • Advanced control timer: 16-bit, 2 CAPCOM channels, 2 outputs, dead-time insertion and flexible synchronization
    • 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)
    • 8-bit basic timer with 8-bit prescaler
    • Auto wakeup timer
    • Window and independent watchdog timers
  • Communications interfaces
    • UART, SmartCard, IrDA, LIN master mode
    • SPI unidirectional interface up to 8 Mbit/s (master simplex mode, slave receiver only)
    • I2C interface up to 400 Kbit/s
  • Analog to digital converter (ADC)
    • 10-bit ADC, ± 1 LSB ADC with up to 3 multiplexed channels, scan mode and analog watchdog
  • I/Os
    • Up to 5 I/Os including 4 high-sink outputs
    • Highly robust I/O design, immune against current injection
  • Development support
    • Embedded single-wire interface module (SWIM) or fast on-chip programming and non-intrusive debugging

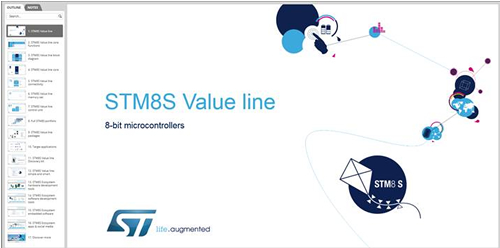

Click below for an overview of the STM8S Value line of 8-bit MCUs

Click here for more information or to buy from Anglia Live.

Click here to download datasheet for the STM8S001 MCU
